23
Analog input setup table
JP1 （ 1#input ） JP2 （ 2#input ）
RV1 RV2
Input voltage (1~5V)
V V
1#Input zero
adjustment
2# Input zero
adjustment
I nput current
I I
Analog output setup table
JP3 （ 1#output ） JP4 （ 2#output ）
RV3 RV4
Exterior provided
voltage(24V)
EXT. EXT.
1#outpt zero
adjustment
2#output zero
adjustmentI nterior provided
voltage
INS. INS.

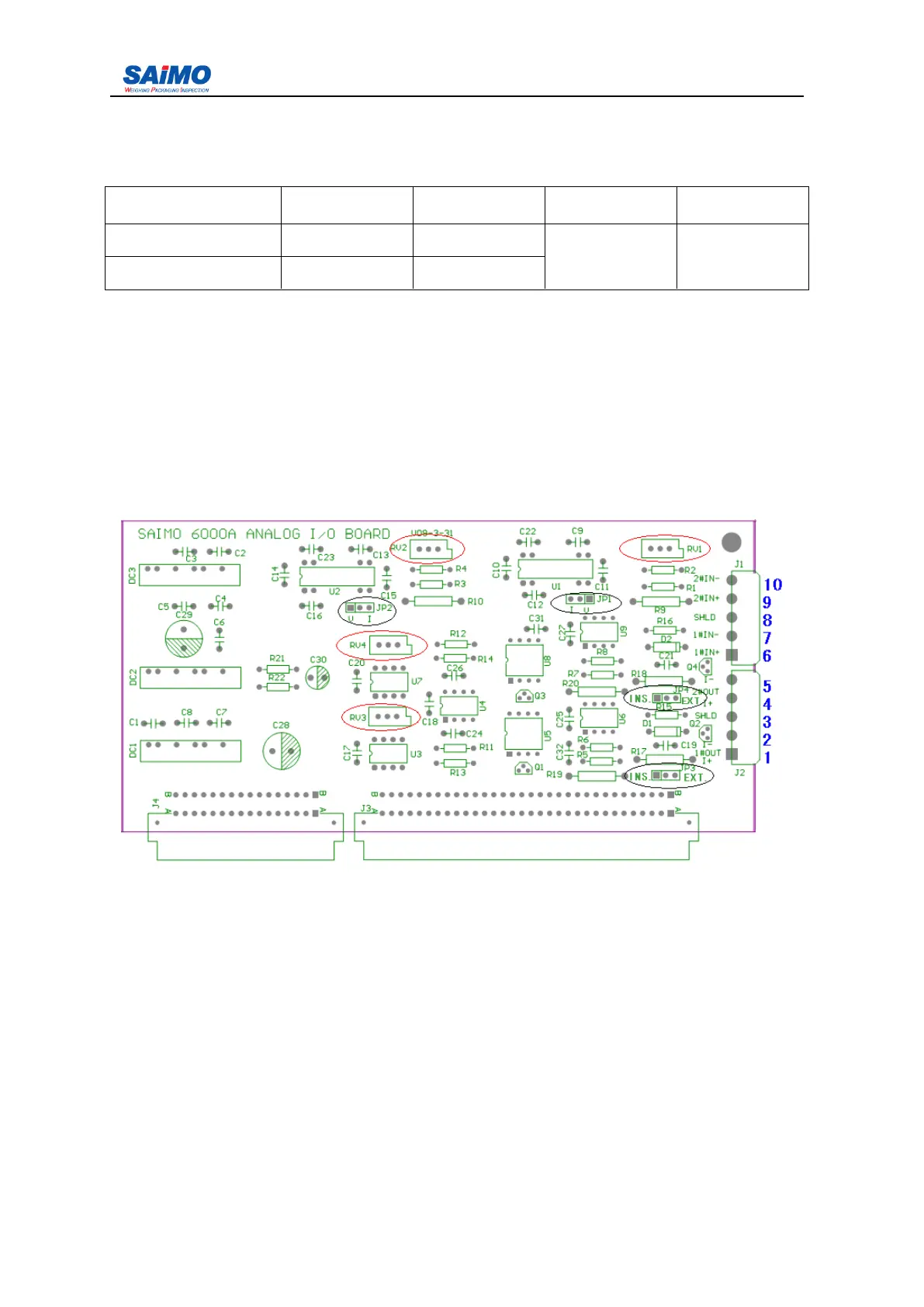

Figure 2- 9 6101 Integrator Analog I/O Board
