1.8.6

1.8.6 Load

Load

Load cell

cell

cell input

input

Load Cell

· integrator supplies 10VDC ± 10% ， 500mA excitation power supply, for parallel

connection of up to 8 load cells.

· Sensitivity 0.5mV/V – 3.5mV/V

· Max. input signal 33mV

· Load cell shield grounding

· E xcitation compensation circuit is employed when the cable distance is over 60

meters but less than 900 meters . Local or remote compensation can be selected by a

jumper set.

1.8.7

1.8.7 Analog I/O Board

Current input (Figure 1-9)

· photoelectric isolation

· separate power supply

· change into voltage input by adding one inner resistor

· Input range: optional 20-4mA or 4-20mA, representing 0 to 100% variable.

· Resistance load: Max. 800ohm

· Capacitance load: no limit

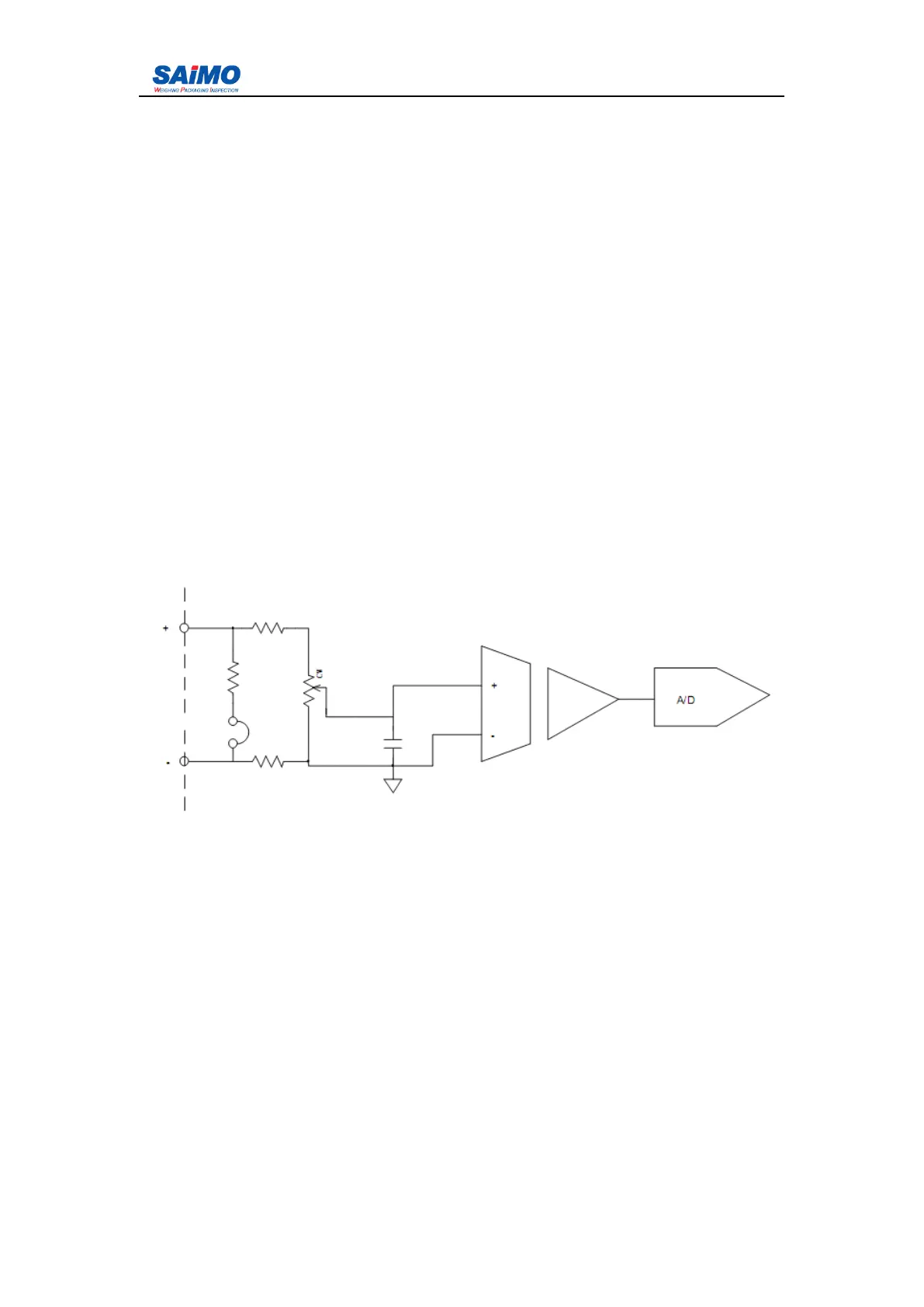

Figure 1- 9 Analog Input interior wiring drawing

1.8.8

Comm. Board

· photoelectric isolation

· 2 way serial port

· RS232 / RS485 jumper selection

· RS-232 Max. distance transmitted: 12m

；

RS-485 Max. distance transmitted:1200 m

· Up to 32 integrators made up of RS-485 metwork (if much more needed, it can be

customized
