5.1 General
General
General
General
The speed sensor monitors the belt speed. It is directly coupled to a rotary shaft which drives a signal
generator. The speed sensor submits an output signal at a frequency directly proportional to the shaft
speed.

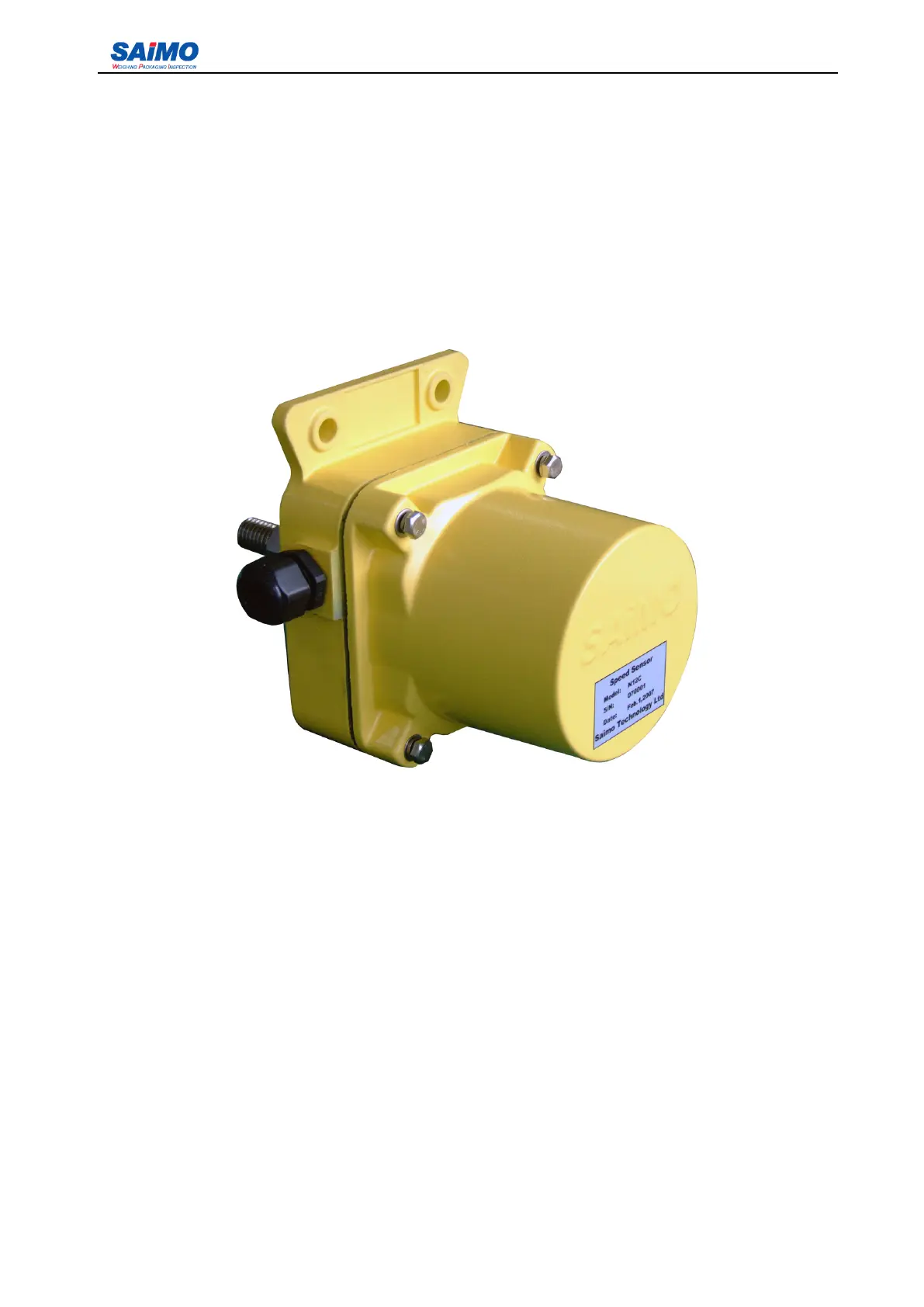

Figure 7-1 N60 Speed Sensor
5.2 Inspection,
Inspection,
Inspection,
Inspection, Unpacking
Unpacking
Unpacking
Unpacking and
and
and
and Storage
Storage
Storage
Storage
Prior to unpacking the speed sensor, inspect the packages for damage. The shipping carrier may be
responsible for the damage.
Check the equipment for any signs of damage in shipment. Be sure to look for any accessories such as
coupling sleeve, shock absorber arm, control arm spring, etc.
If the speed sensor is not installed on the site recently, it can be safely stored in ambient temperatures
of 0 to 50
º
C away from moisture.
