Sainlogic WS-0310 - Sensor Assembly Setup; Insert Transmitter Batteries

4
3.3 Sensor Assembly Set Up

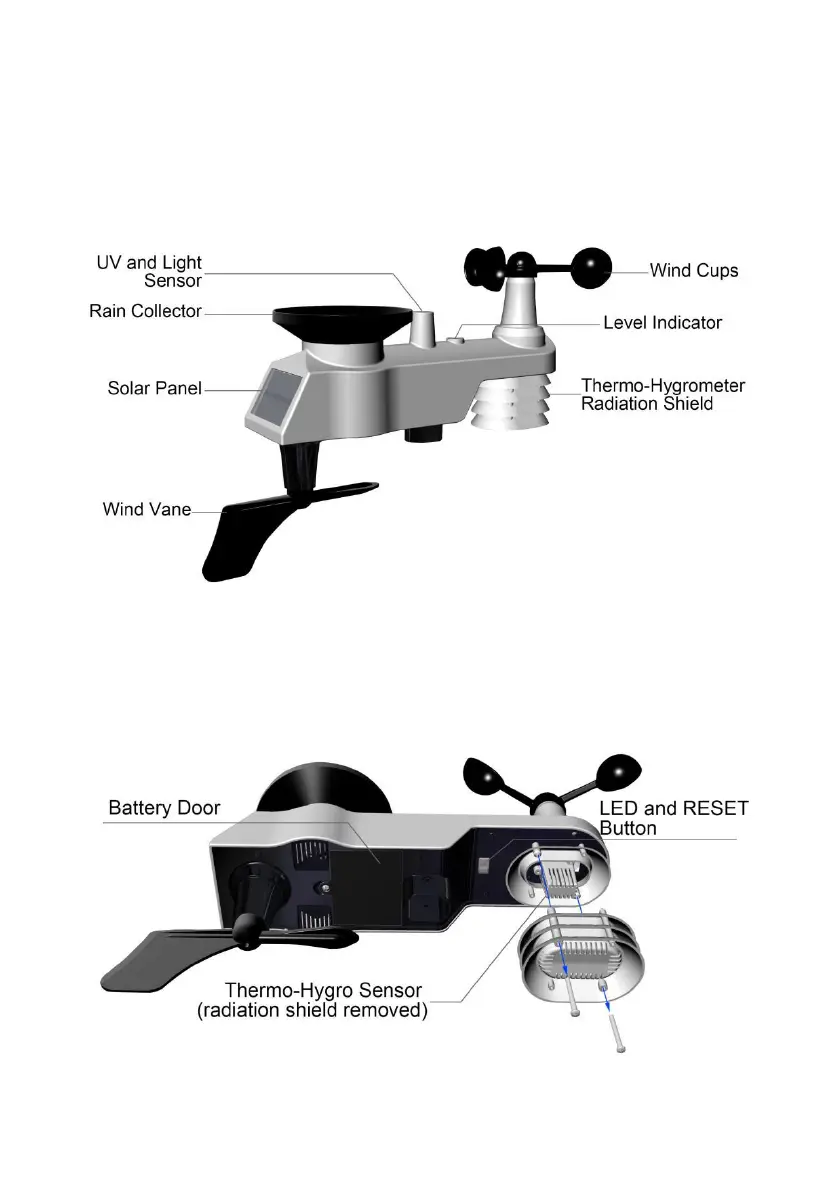

The following illustration shows the full segment for Thermo-Hygrometer
，WIND,RAIN and UV INDEX sensor.purposes only ,as shown in
Figure 2.
Figure 2
3.3.1 Insert batteries into the transmitter. Locate the battery
door on the transmitter, push and open the battery compartment, as
show in Figure 3.
Figure 3
