Part 2: Mechanical installation
NAME QTY.

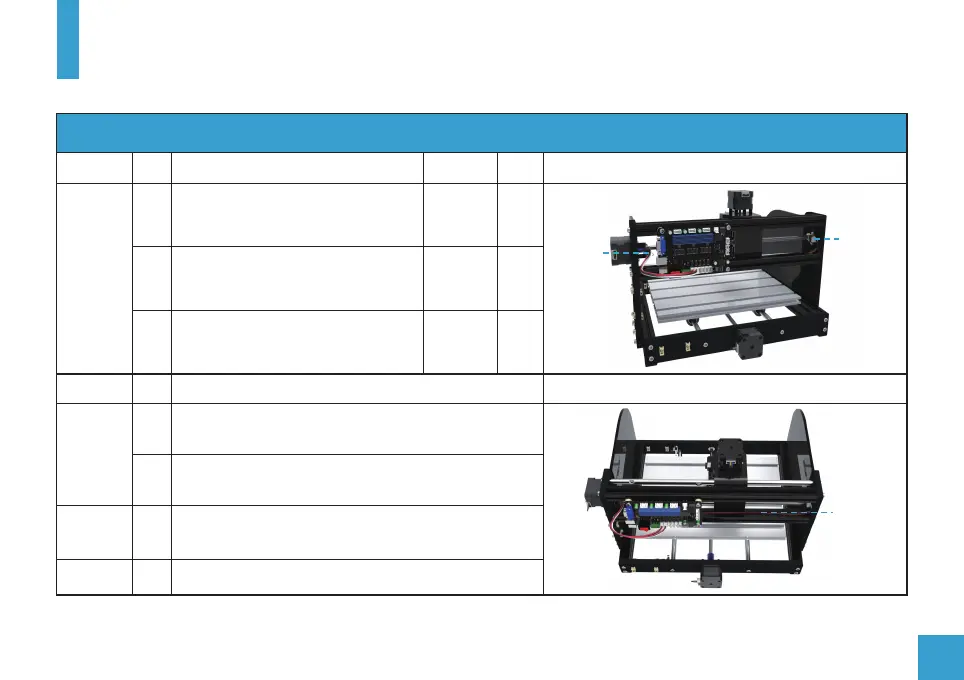

Step 20: Wiring Connecting wires ( X Axis Limit Switch)
NO.
Operation
Steps
Prepare
materials
VIEW 1
VIEW 2
CODE
Tools
Check
Remind
Limit Switch Connecting wire
X LIM + 15cm
Limit Switch Connecting wire
X LIM - 53cm
Sealing strip 340mm (X Axis)
1
1
3
2
1
1
1
1
2
MX3-29
MX3-30
MX3-48
Put Limit switch connecting wire insert the Control board
and Limit switch, the switch near by the motor is the LIM+.
Use the Sealing strip to cover the wires inside the
Aluminum Profile.
Pay attention the mark on the Control board, make sure
The correct sequence and direction of the connectors.
MX3-30
MX3-29
MX3-48
use here
