Part 3: Control Card Introduction
d. MPG Interface pin definition

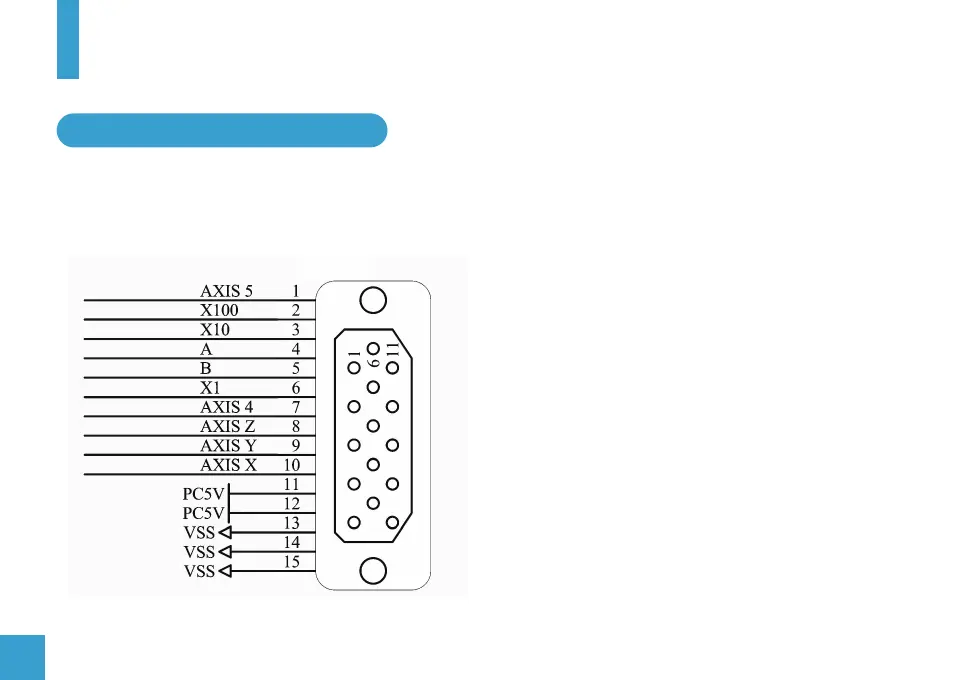

Support for external connect electronic hand wheel, use HDR15 interface to connect electronic hand wheel, Interface pin
definition as shown below, You can weld the hand wheel connector according to the definition, or you can contact us to
buy the hand wheel that has been welded.:
Note: The hand wheel does not directly control the motor
operation, but controls the motor through software. When
the electronic hand wheel is rotated, the software
coordinates will change.
