SAJ B1 Series User Manual

B1 Series
- 16 -
must be connected in another column.
battery 1
battery 2
battery 3
battery 4
battery 8
battery 7
battery 6
battery 5

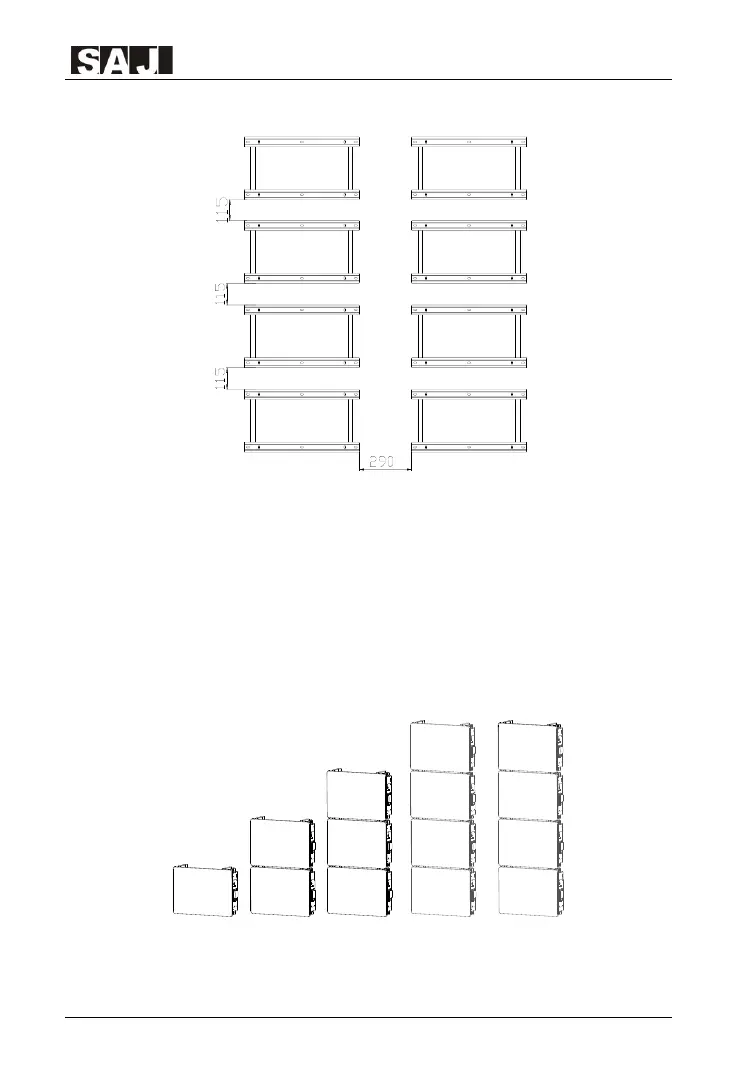

Figure 3.10 Clearance between brackets
In order to have a better connection, please confirm that the cable glands
whether have been removed before mounting. During batteries mounting,
please install them from bottom to top, i.e. install B1 No.4 firstly, B1 No.3
secondly, B1 No.2 thirdly then B1 No.1 (refer to fig 3.11). Same
installation sequence for the second column of batteries, i.e. B1 No.5> B1
No.6> B1 No.7> B1 No.8. At least 2 installers required at site.
Figure 3.11 Installation of batteries
No.1
No. 2
No. 3
No.4
No.8
No. 7
No. 6
No.5
