B1 Series

- 26 -

4.3 Communication interface

Take out the Ethernet cable from the battery packaging.

Note: First pass the cable through the waterproof gland and then crimp the

RJ45 plug.

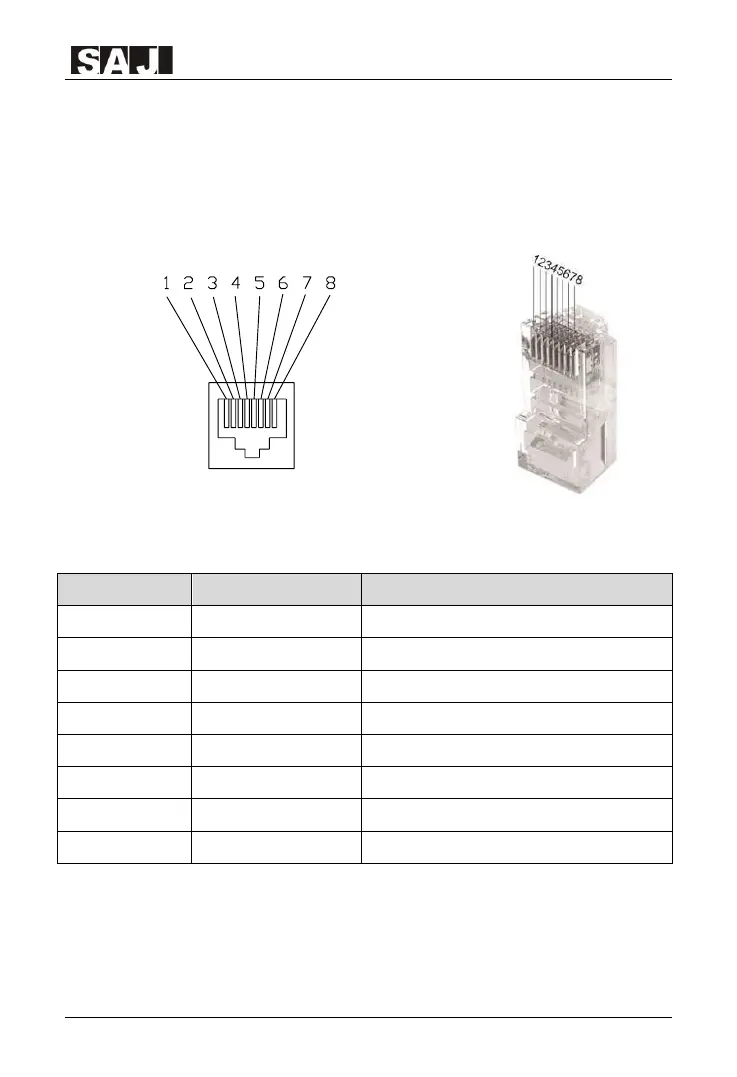

Figure 4.9 Interface definition

Code

Color

Name

White-orange

Blank

Orange

Blank

White-green

Blank

Blue

CAN-H

White-blue

CAN-L

Green

Blank

White-brown

CAN-L

Brown

CAN-H

Table 4.2 Interface pin description
