Note: When installing outdoors, the height of the battery from the ground
should be considered to prevent the battery from soaking in water. The
specific height is determined by the site environment.
3.3 Mounting Procedure
3.3.1 Positioning the drilled holes for bracket
The battery uses free-standing installation and its position is determined by
the drilled holes of bracket，Unit: mm.

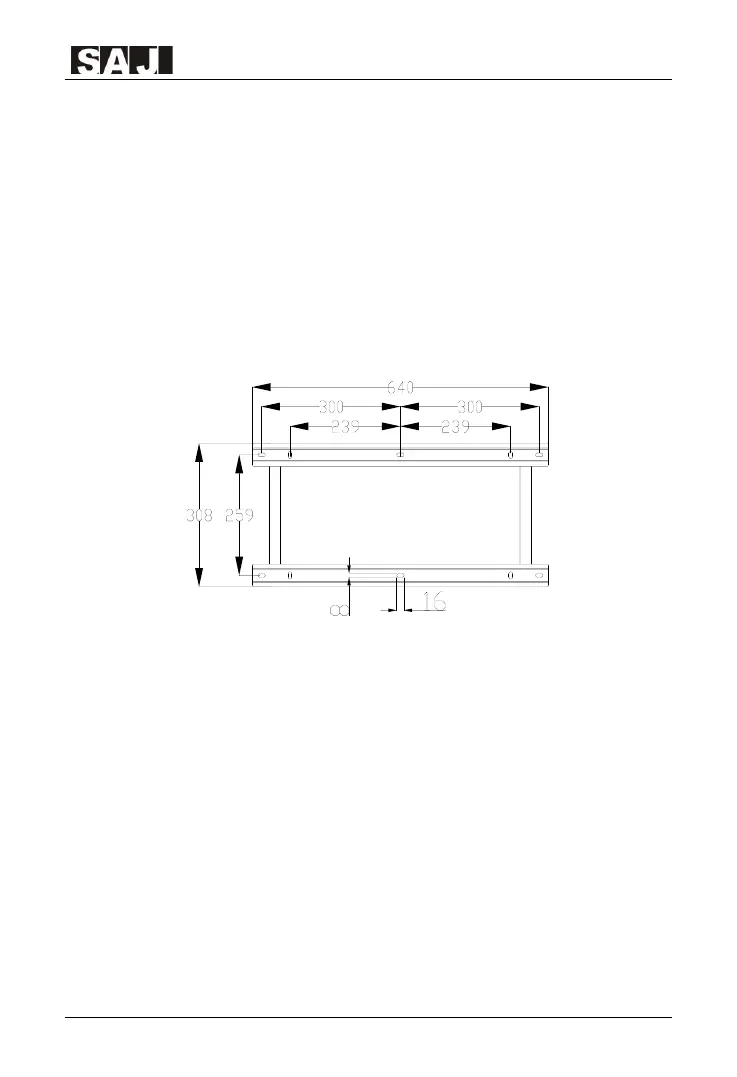

Figure 3.5 Bracket for B1-5.1-48
Make sure that the wall is capable of mounting screws and supporting the
weight of the battery pack before installation. Mark the proper positions of
mounting bracket and drill holes on those positions (8mm in diameter,
50mm in depth) by using the mounting bracket as a template, and then use
a rubber hammer to drive the screw fixing seat into the holes to fix the
bracket.
