SAJ H2-5K-T2 - Setting the V-Watt and Volt-Var Modes

Hybrid Solar Inverter User Manual
47
48
Fixed power factor mode
Fixed reactive power mode

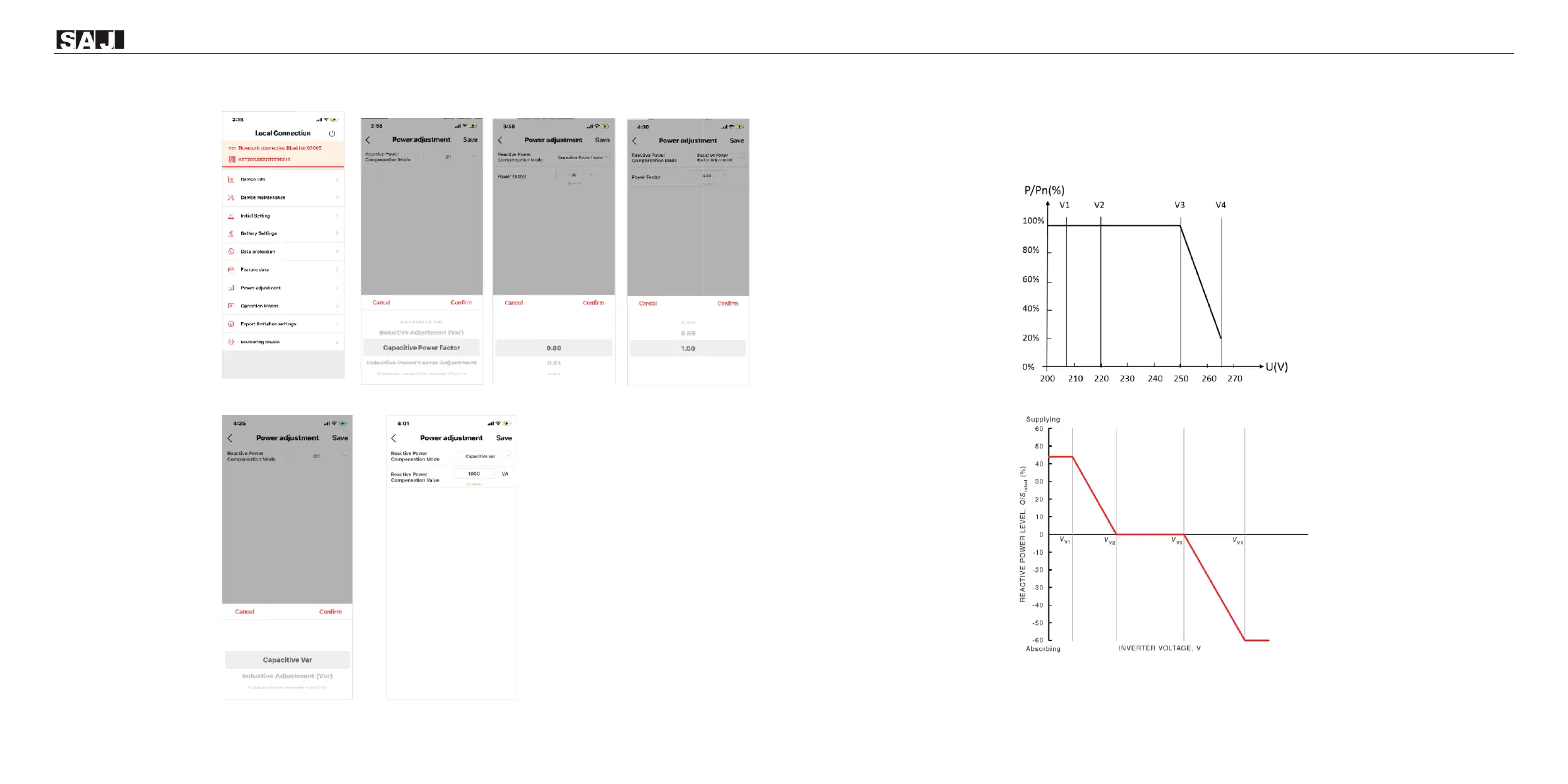

6.8.2 Setting the V-Watt and Volt-Var Modes
This inverter complies with AS/NZS 4777.2: 2020 for power quality response modes. The inverter satisfies
different regions of DNSPs' grid connection rules requirements for volt-watt and volt-var Settings. e.g.: AS4777
series setting as shown below.
Figure 6. 1
Curve for a Volt-Watt response mode (AS4777 Series)
Figure 6. 1
Curve for a Volt-Var control mode (AS4777 Series)
