4.2 Installation Method and Position
4.2.1 Installation Position and Clearance
This device is cooled by natural convention and suggested an indoor installation or an installation under a
sheltered place to prevent the product from exposure to direct sunlight, rain and snow erosion.

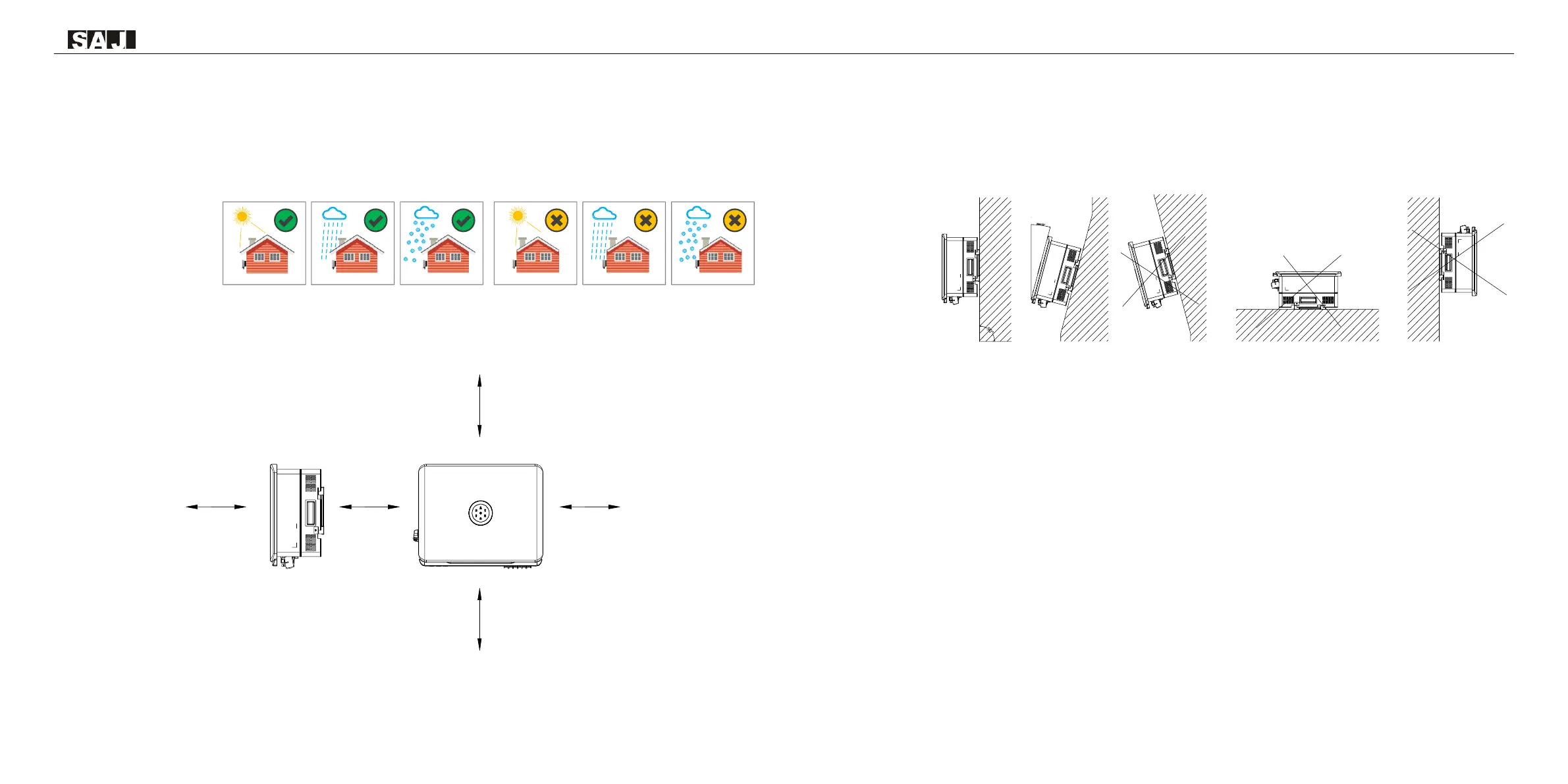

Figure 4.1
Installation location
Please reserve enough clearance around the product to ensure a good air circulation at the installation area.
Because poor air ventilation will affect the working performance of internal electronic components and
shorten the service life of the system.
Figure 4.2
Installation clearance
4.2.2 Mounting Method
Figure 4.3
Mounting method
① The equipment employs natural convection cooling, and it can be installed indoor or outdoor.
② Mount vertically. Never install the device tilted forwards, sideways, horizontally or upside down.
③ When mounting the device, please consider the solidity of wall for product, including accessories, make
sure the wall has enough strength to hold the screws and bear the weight of products. Please ensure the
mounting bracket mounted tightly.
Installation Environment Requirements
• The installation environment must be free of inflammable or explosive materials.
• Install the device away from heat source.
• Do not install the device at a place where the temperature changes extremely.
• Keep the device away from children.
