SAJ H2-6K-S3 - Page 14

H2 Series
19
20
360
165
4- ∅
8

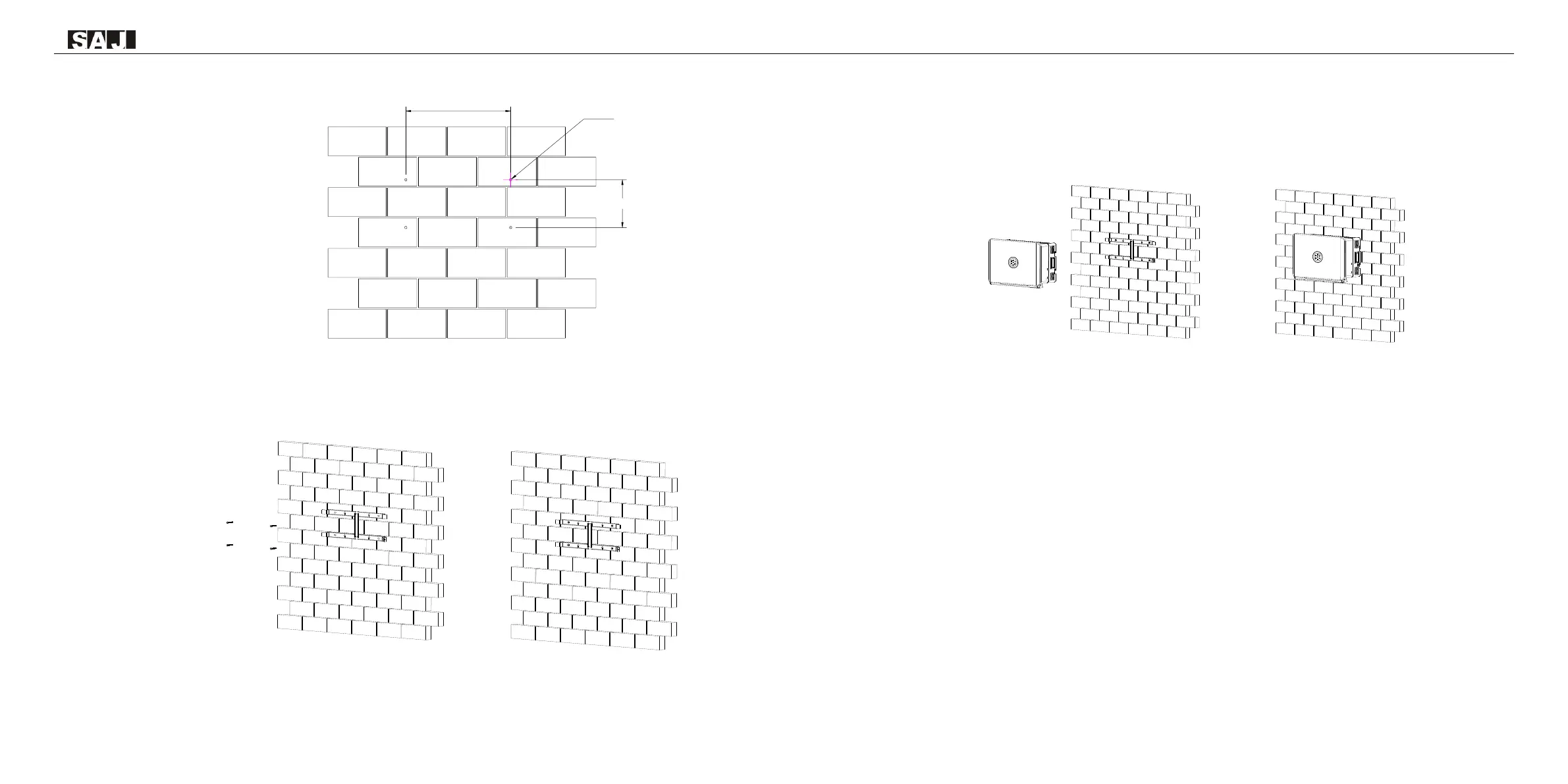

Figure 4.5
Drill holes for installation
3. Secure the Screws and the Rear Panel
The panels should be secured onto the mounting position by screws as shown in Figure 4.6.
Figure 4.6
Secure the panel
4. Mount the Inverter
Carefully mount the inverter into the rear panel as shown in Figure 4.7. Make sure that the rear part of the
equipment is closely mounted into the rear panel.
Figure 4.7
Mount the inverter
