H2 Series
10

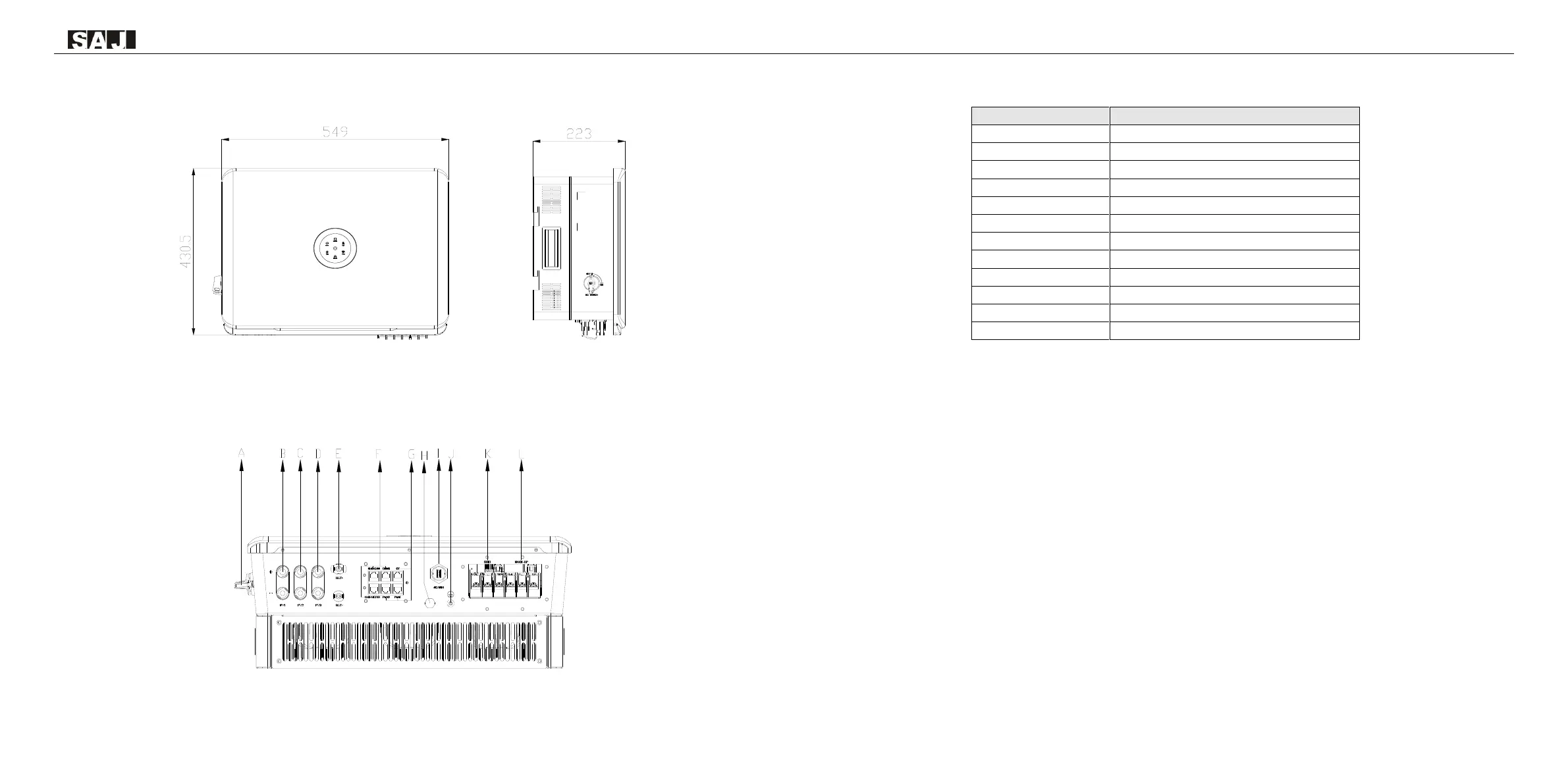

3.3 Overview of Product
Figure 3.1
Dimensions of inverter
3.4 Terminals Description
Figure 3.2
Electrical interface of H2 Inverter
Code
Name
A
DC Switch
B
DC Input
C
DC Input
D
DC Input
E
Battery Input
F
BMS/ CAN/ EMS/ METER/ DRM
G
CT/ Inverter Parallel port
H
Release Valve
I
4G/ Wi-Fi
J
Ground Connection
K
Grid
L
Backup
Table 3.1
Terminals description
