R5 Series
- 27 -

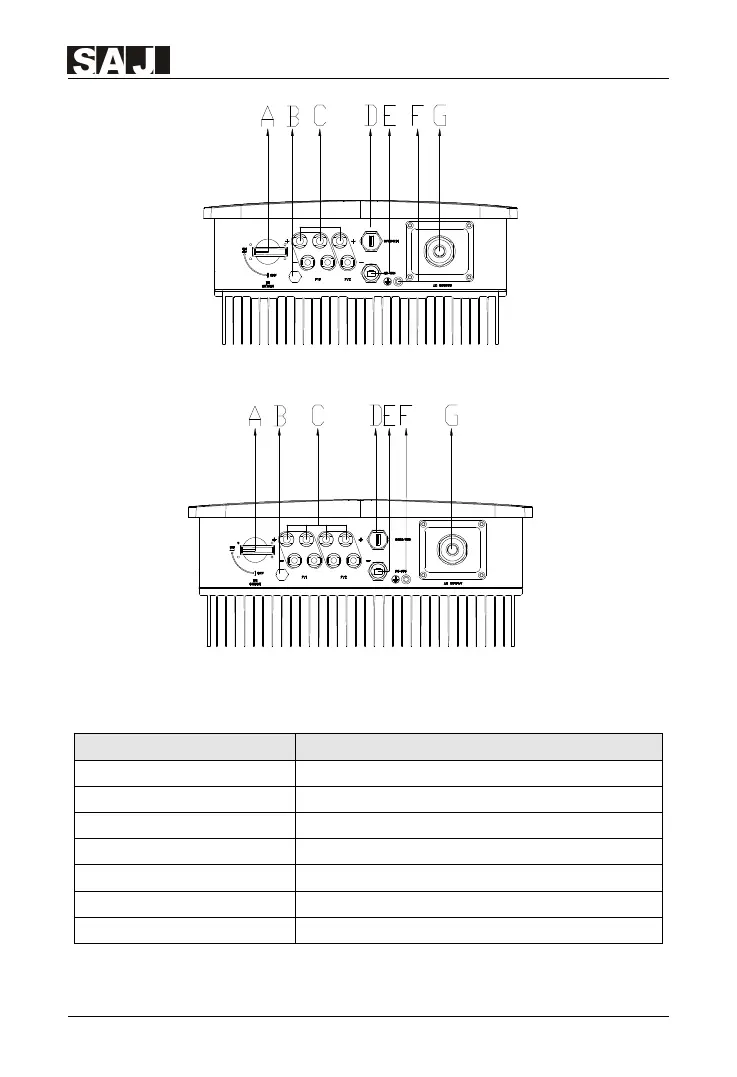

Figure 5.2 Electrical Interface of R5-13K/15K-T2
Figure 5.3 Electrical Interface of R5-17K/20K-T2
Code
Name
A
DC Switch
B
Decompression Valves
C
DC Input
D
RS232 Communication Port(GPRS/WIFI/4G)
E
RS485 Communication Port
F
Ground Connecting port
G
Terminal Block
Table 5.2 Specifications for Interface
