R5 Series
Chapter 3 Product Information
3.1 Application Scope of Products
R5-XK-TX products are grid-tied three phase inverters without transformers, and
the inverters are important components of grid-tied solar power systems.
The R5 inverter change the DC generated by solar panels into AC which is in
accordance with the requirements of public grid and send the AC into the grid,

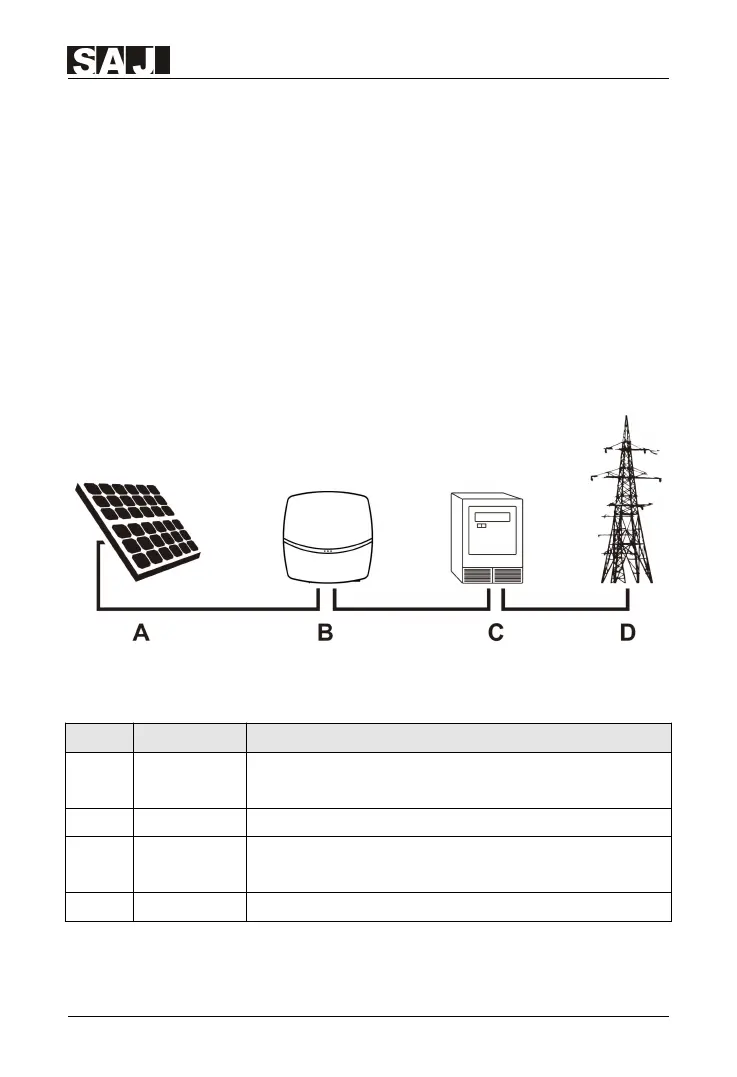

Table 3.1 shows the structural diagram of the typical application system of R5
inverter.
Figure3.1 R5 series application
Monocrystalline or polycrystalline silicon, and thin-film PV
modules with II protection and need no ground connection
R5-4K/5K/6K/8K/9K/10K/12K/13K/15K/17K/20K-T2
Standard metering tool for measuring the output electric power
of inverters
