Chapter 6 Debugging Instructions
6.1 Introduction of Human-computer Interface

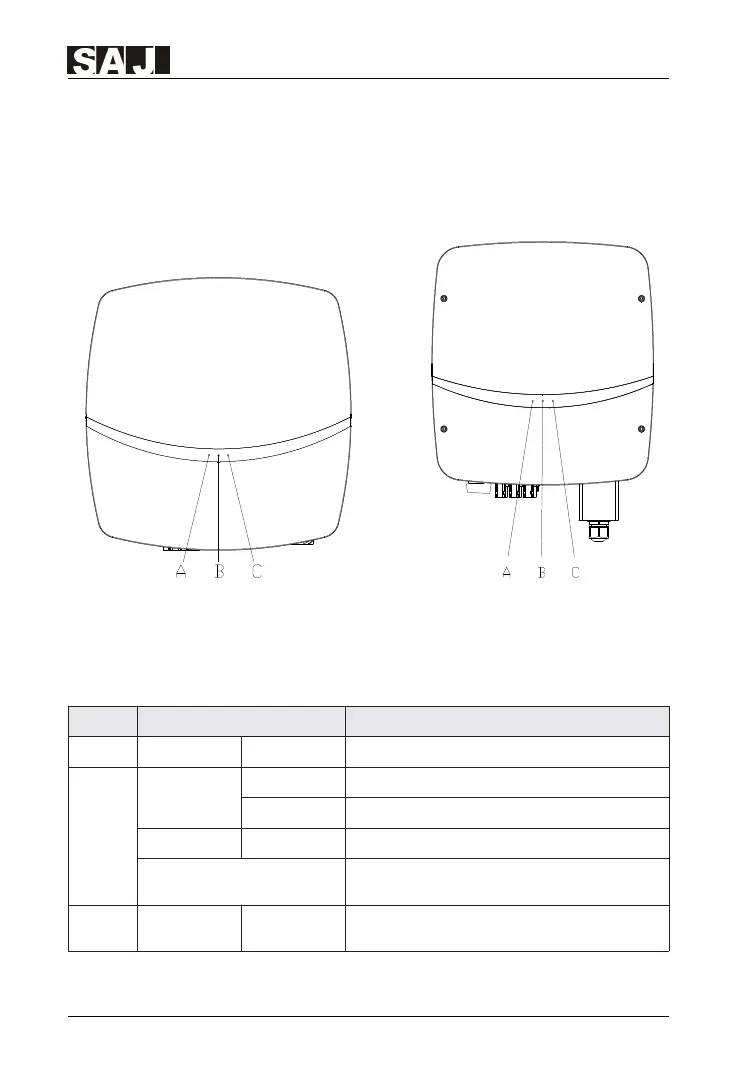

Figure 6.1 Human-computer Interface
A-Power indicator light B-System status light C-Communication lamp
指示灯
LED lamps state
Description
A
Yellow
Always light on
The inverter is just on power.
B
Green
Flicker: 1 s/time
The inverter is in the initialization or waiting state.
Always light on
The inverter is in normal grid-connected state.
Red
Always light on
Faults inside the inverter.
Green lamp and red lamp 0.5
s/time flickering in alternative
Software is upgrading in the inverter.
C
Blue
Flicker
There is communication in data interaction form
outside the inverter.
Table 6.1 Interface description
