R5 Series
- 26 -
5.2 Specifications for Electrical Interface

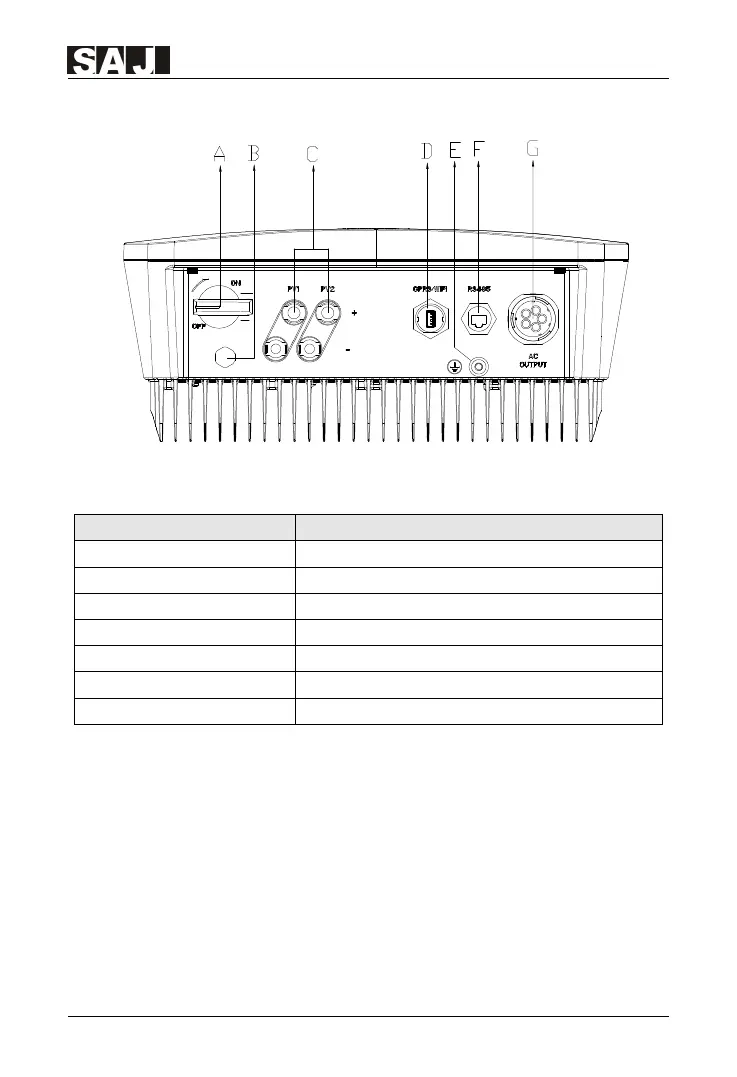

Figure 5.1 Electrical Interface of R5-4K/5K/6K/8K/9K/10K/12K-T2
Code
Name
A
DC Switch
B
Decompression Valves
C
DC Input
D
RS232 Communication Port(GPRS/WIFI/4G)
E
Ground Connecting port
F
RS485 Communication Port
G
AC Quick-connect Terminal
Table 5.1 Specifications for Interface
