SAJ R5-5K-T2 User Manual

R5 Series
- 29 -

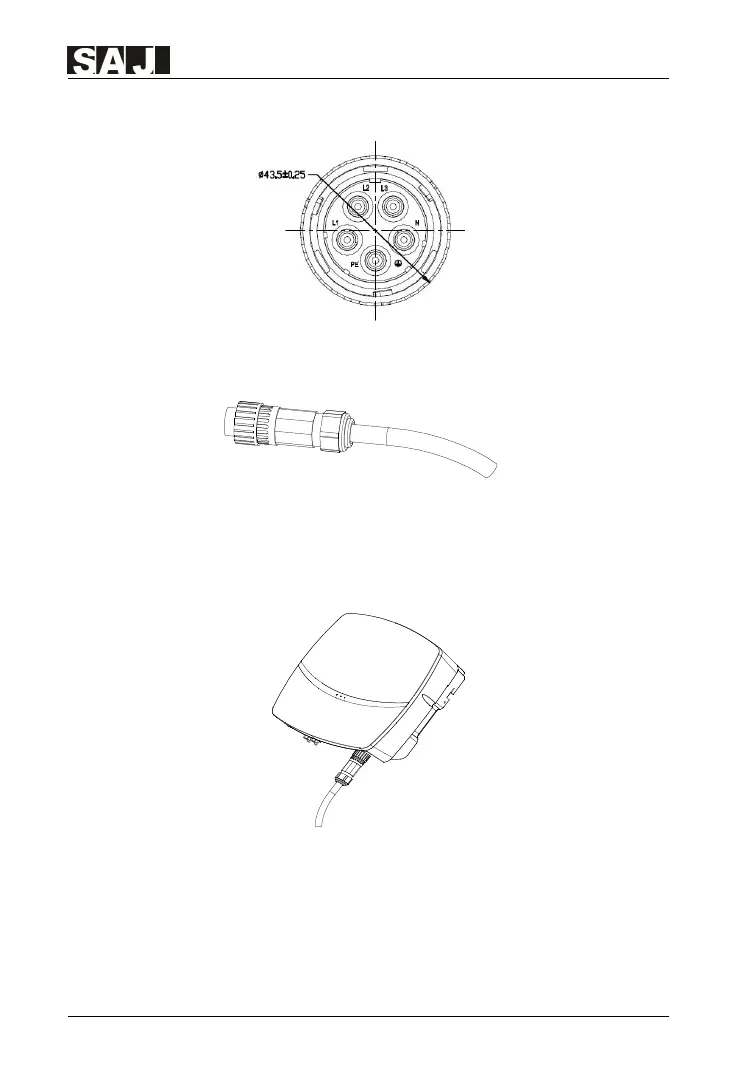

3.Connect the cables according to connection marks of L, N and PE.
Figure 5.6 Connect cable
4.Screw all parts of the AC connector.
Figure 5.7 Screw the connector
5.Connect the AC connector to the equipment securely, ensuring the pins are
connected directly. Then the connection of AC cable is completed.
Figure 5.8 Connect the Inverter
