COMMISSIONING
6.1 Introduction of Human-computer Interface

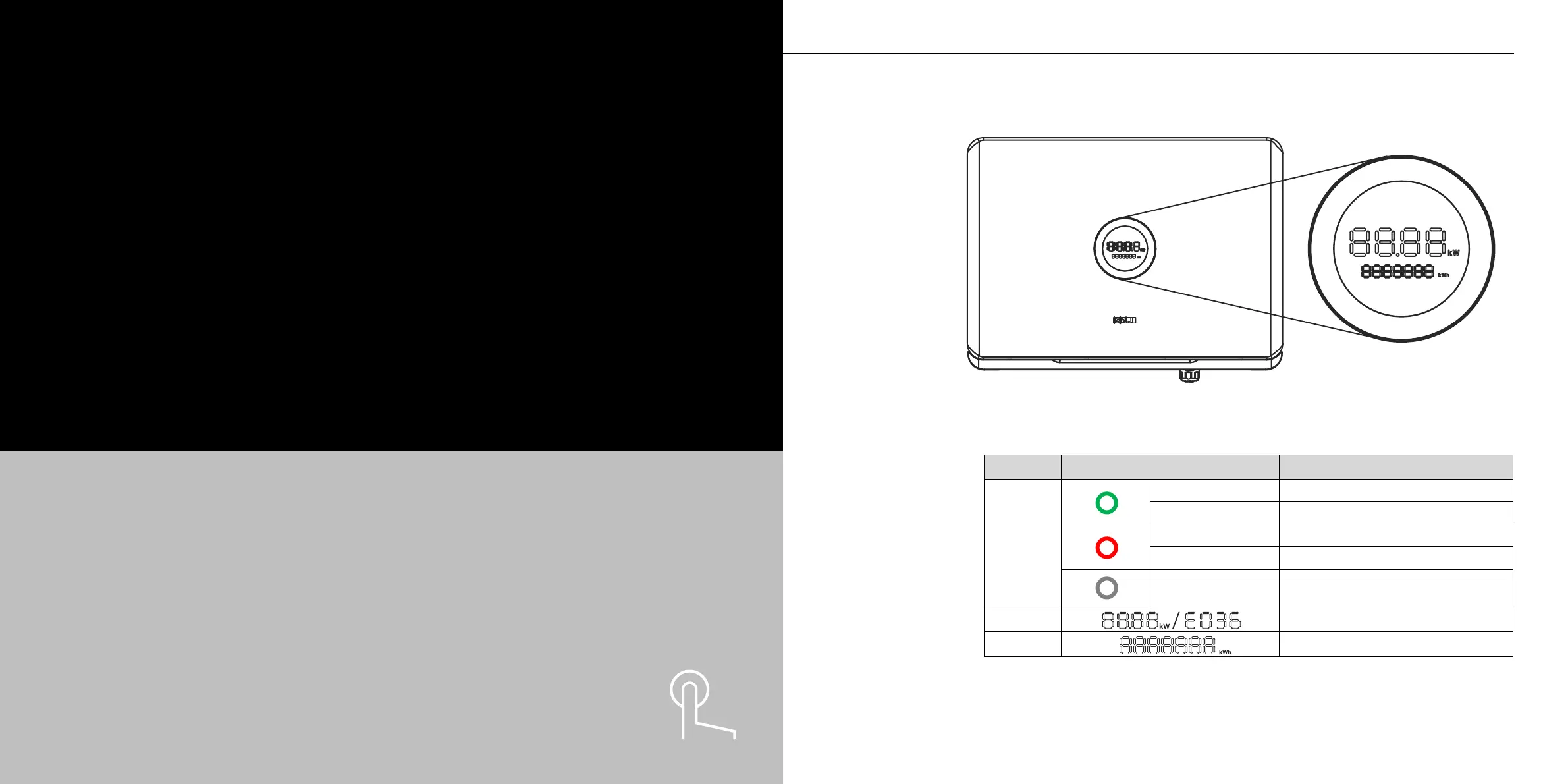

Figure 6.1
Human-computer interface
Display
Status
Description
Ring Light
Solid Green
The inverter is in normal on-grid state
Breathing Mode
The inverter is in the initialization or waiting state
Solid Red
An error occurs
Breathing Mode
Software is upgrading in the inverter
OFF
Power off
LED Panel 1
Current power (kW) / Error code
LED Panel 2
Total yield (kWh)
Table 6.1
Interface description
