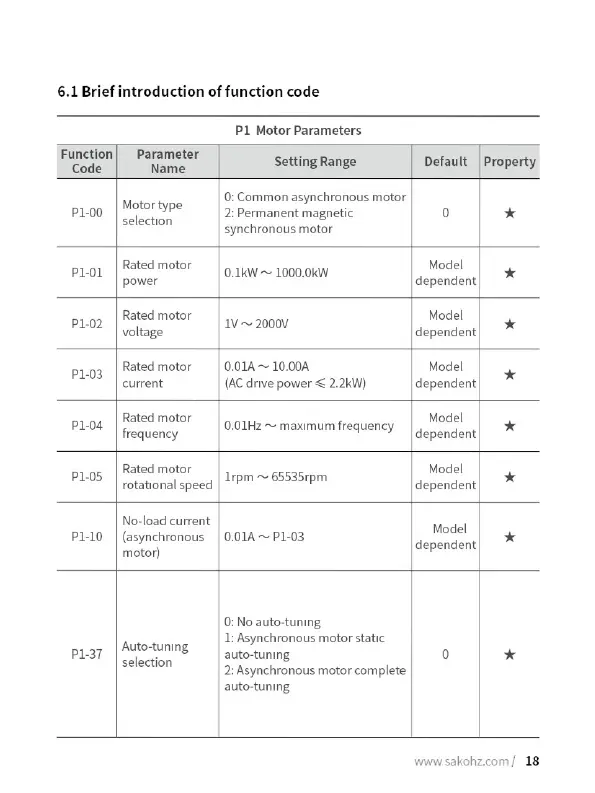

6.1 Brief introduction of function code
P1 Motor Parameters
Function| Parameter ,
Code Nana Setting Range Default | Property
0: Common asynchronous motor
P1-00 Motor type 2: Permanent magnetic 0 *
selection
synchronous motor
pi.o1 | Ratedmotor | 4 iw ~ 1000.0kW Moule *
power dependent
P1-02 Rated motor 1V~2000V Model a:
voltage dependent
P1-03 Rated motor 0.01A ~ 10.00A Model te
current (AC drive power < 2.2kW) dependent
P1-04 Rated motor 0.01Hz ~ maximum frequency More) *
frequency dependent
Rated motor Model
Bi0S rotational speed Irpm~ 65525rpm dependent *
No-load current Model
P1-10 | (asynchronous | 0.01A ~ P1-03 d *
ependent
motor)
0: No auto-tuning
Autor 1: Asynchronous motor static
p1-37 | “utotuning auto-tuning 0 *
selection
2: Asynchronous motor complete
auto-tuning
