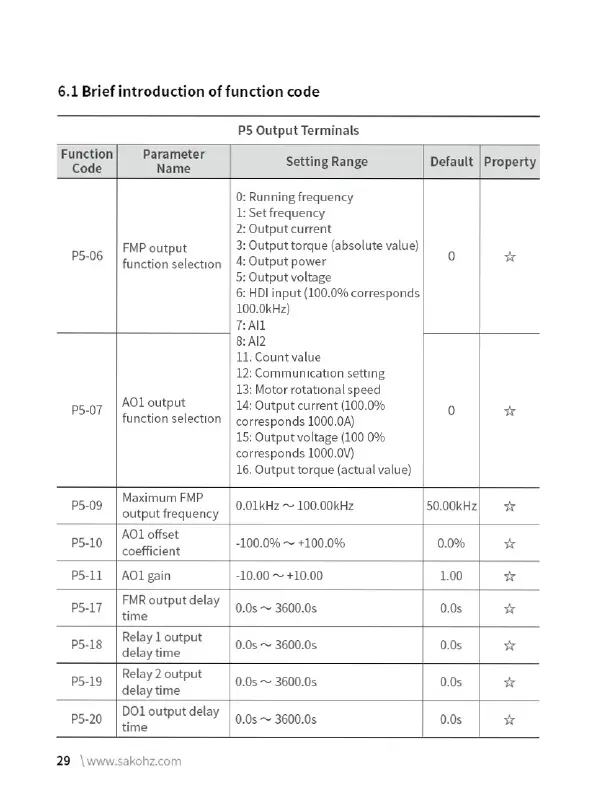

6.1 Brief introduction of function code
P5 Output Terminals
Function Parameter
Code ene Setting Range Default | Property
| 0: Running frequency
| 1: Set frequency
2: Output current
FMP output 3: Output torque (absolute value)
P5-06 | function selection | 4: Output power 2 *
5: Output voltage
6: HDI input (100.0% corresponds
100.0kHz)
T: AIL
8: Al2
11. Count value
12: Communication setting
13: Motor rotational speed
P5-07 AO1 output 14: Output current (100.0% 0 gt
function selection | corresponds 1000.0A)
15: Output voltage (100 0%
corresponds 1000.0V)
16. Output torque (actual value)
ps.og | MaximumFMP | 9 o1kHz ~ 100.00kHz 50.00kHz| +x
output frequency
psary | MObemeet -100.0% ~ +100.0% 0.0%
coefficient
P5-11 | AOl gain -10.00 ~ +10.00 1.00
ps-17_ | FMRoutputdelay | 9 4. _ 3600.05 0.0s
time
Relay 1 output
P5-18 delay time 0.0s ~ 3600.0s 0.0s *
psig | Relay2output | 99, ~ 3600.05 0.0s x
delay time
p5.20 | POL output delay | 99s ~ 3600.0s 00s | x
