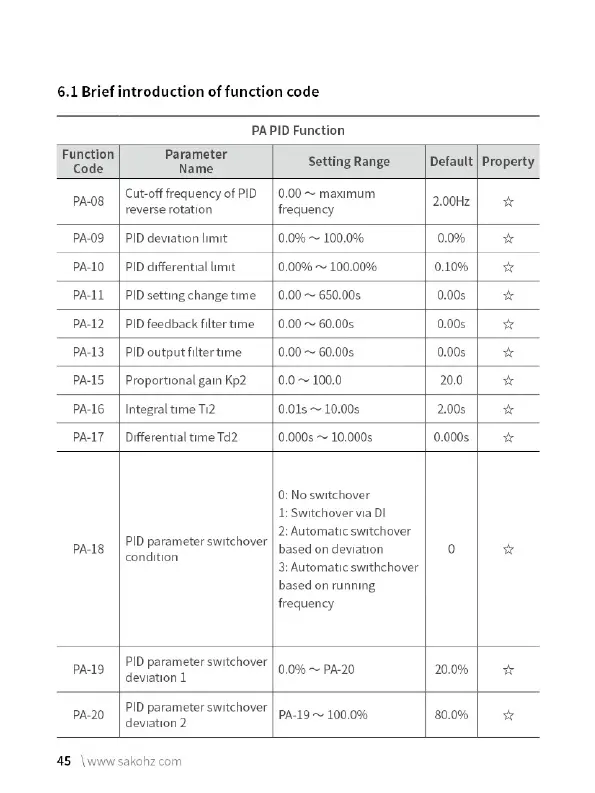

6.1 Brief introduction of function code
PA PID Function
Function Parameter a
Code Narna Setting Range Default | Property
PA-08 Cut-off frequency of PID | 0.00 ~~ maximum 2.00Hz she
reverse rotation frequency
PA-09 | PID deviation limit 0.0% ~ 100.0% 0.0% Ww
PA-10 | PID differential limit 0.00% ~ 100.00% 0.10% Ww
PA-11 | PlDsettingchangetime | 0.00 ~ 650.00s 0.00s Ww
PA-12 | PID feedback filter time | 0.00 ~ 60.00s 0.00s w
PA-13 | PID output filter time 0.00 ~ 60.00s 0.00s Ww
PA-15 | Proportional gain Kp2 0.0 ~ 100.0 20.0 bs 4
PA-16 | Integral time Ti2 0.01s ~ 10.00s 2.00s Ww
PA-17 | Differential time Td2 0.000s ~ 10.000s 0.000s Ww
0: No switchover
1: Switchover via DI
PID h 2: Automatic switchover
PA-18 parameter switchover based on deviation 0 bs ¢
condition
3: Automatic swithchover
based on running
frequency
PA-19 PID parameter switchover 0.0% ~ PA-20 20.0% ge
deviation 1
pa.29 | PD parameter switchover | by 19 ~ 100.0% 80.0% | x
deviation 2
