Sako SKI780 - Page 63

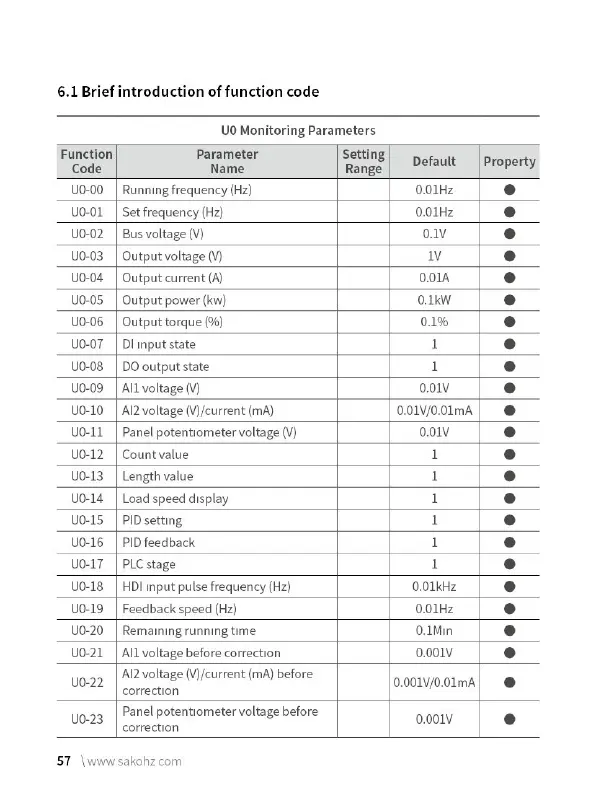

6.1 Brief introduction of function code
UO Monitoring Parameters
dpa Poet ees Default | Property
U0-00 | Running frequency (Hz) 0.01Hz e
U0-01 | Set frequency (Hz) 0.01Hz @
U0-02 | Bus voltage (V) 0.1V e
U0-03 | Output voltage (V) lv e
U0-04 | Output current (A) 0.01A e@
U0-05 | Output power (kw) 0.1kW e
U0-06 | Output torque (%) 0.1% @
U0-07 | Dl input state 1 e
U0-08 | DO output state 1 e
U0-09 | All voltage (V) 0.01V e@
U0-10 | Al2 voltage (V)/current (mA) 0.01V/0.01mA e@
U0-11 | Panel potentiometer voltage (V) 0.01V e
U0-12 | Count value 1 e@
U0-13 | Length value 1 e
U0-14 | Load speed display 1 e
U0-15 | PID setting 1 e
U0-16 | PID feedback 1 @
U0-17 | PLC stage 1 e
U0-18 | HDI input pulse frequency (Hz) 0.01kHz e
U0-19 | Feedback speed (Hz) 0.01Hz e
U0-20 | Remaining running time 0.1Min e@
U0-21 | All voltage before correction 0.001V e
vo-22 joomean (V)/current (mA) before 0.001V/0.01mA e
0-23 Panel potentiometer voltage before 0.001V e
correction
57 \wwwsakohzcom
