Revised 5/19/2010 5.3

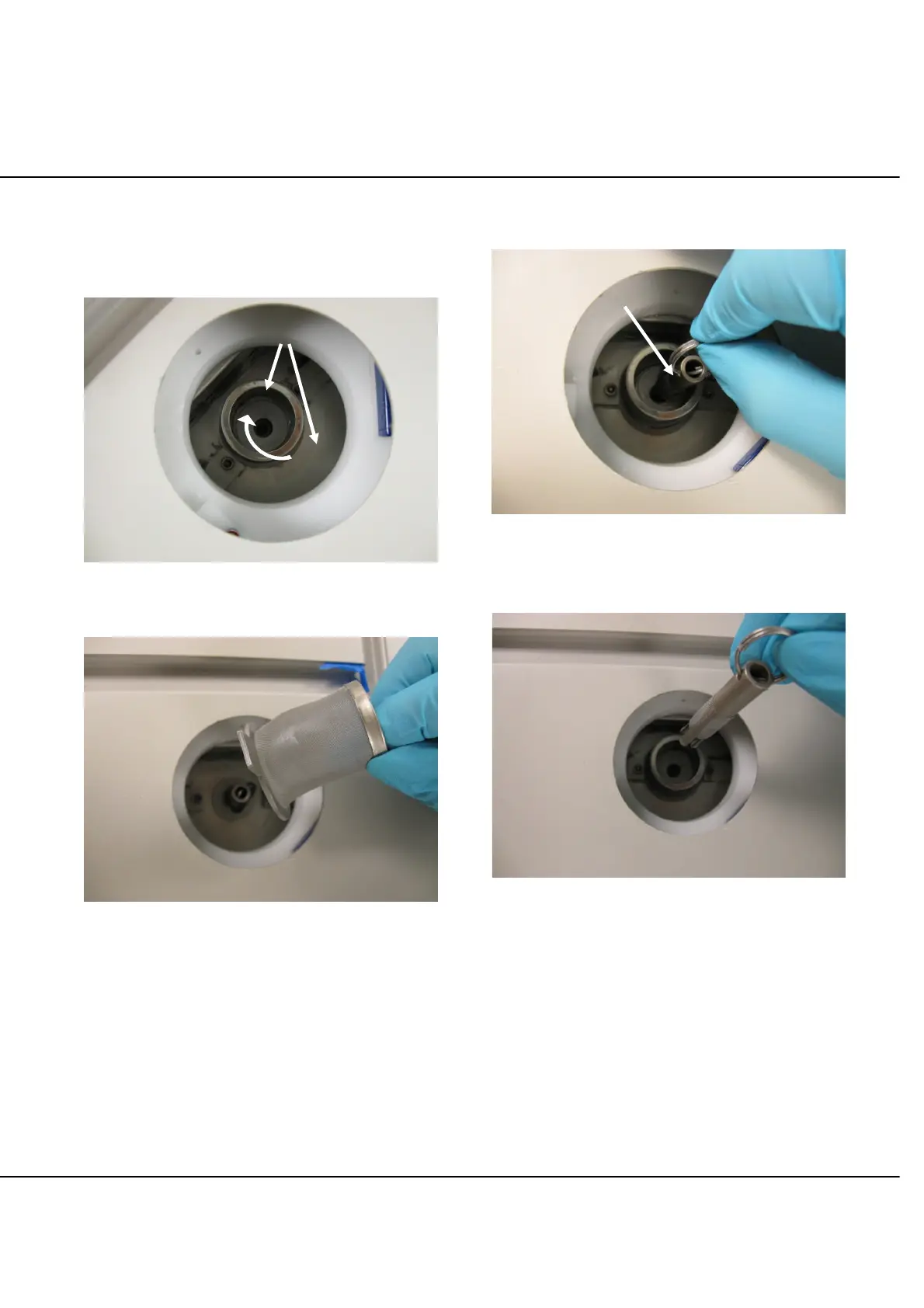

3. Turn the filter 90° so it can be lifted out of the
reservoir. Rotate by holding the top of the filter until
tabs are turned away from the locked down positions
(Figure 5-D).
Figure 5-D
4. Lift the filter out for cleaning (Figure 5-E).
Figure 5-E
5. Use a bath of solvent to clean wax and debris out of
the filter.
6. Dry the filter and reinstall it in the reservoir, taking
care to tighten the screws down on the tabs of the
filter.
7. Gently pull the parasitic filter straight out from the
center (Figure 5-F).
Figure 5-F
8. Use a bath of solvent to clean the wax filter.
9. Dry the filter and reinstall it in the reservoir (Figure 5-G).
Figure 5-G
10. Place the panel cover back.
