INTRODUCTION
1.2 Revised 5/19/2010

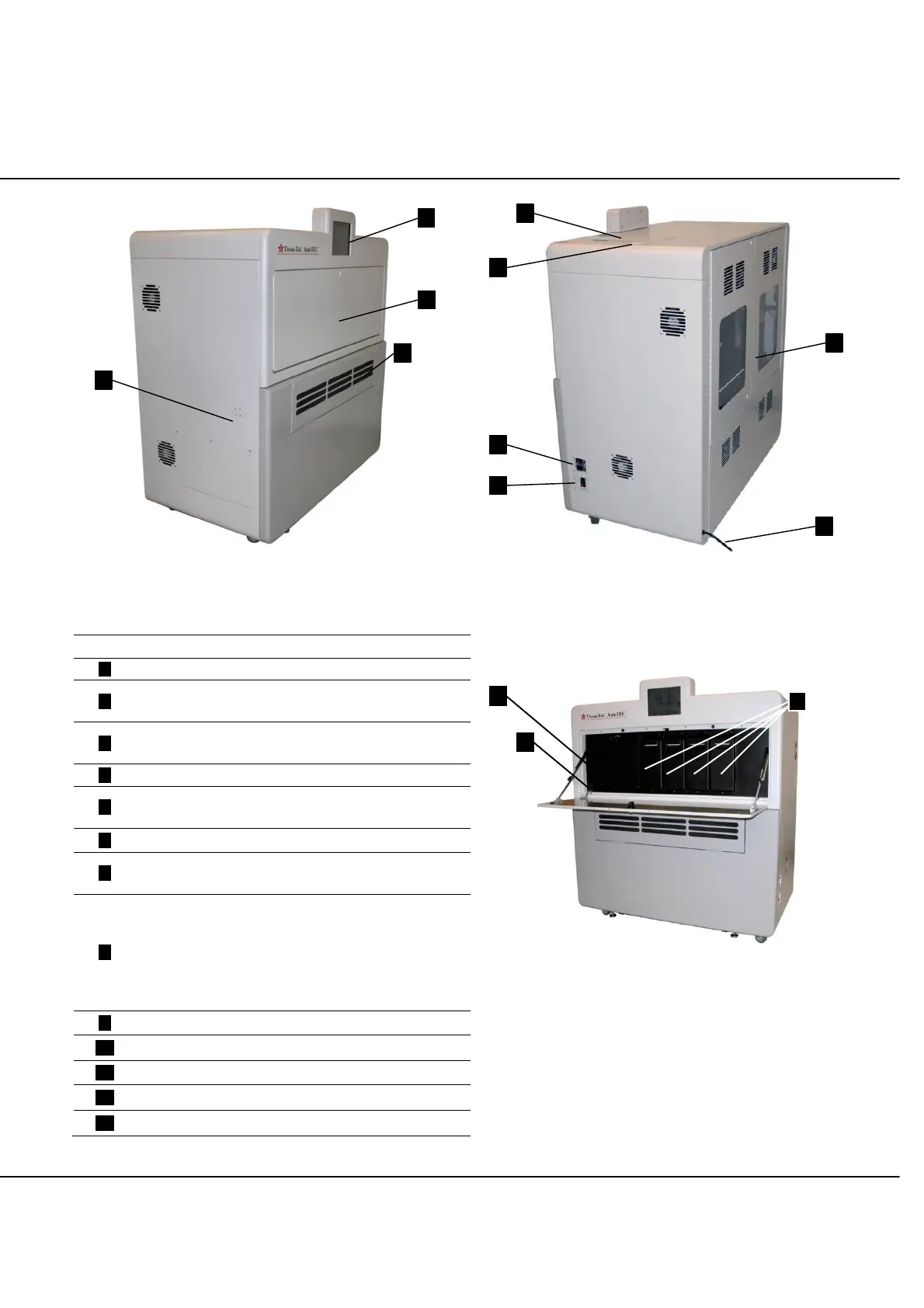

Figure 1-A: Front View and Left Panel
Figure 1-B: Rear View and Right Panel
Figure 1-C: Main Door Opened
Location Component
.1. Touch screen monitor
.2.
Main door, for access to input door, output doors and paraffin
drip tray
.3.
Front door, equipped with safety interlocks. Allowing operator
easy access to base molds and air filter
.4. Paraform recovery chute door, for retrieval of rejected cassettes
.5.
Paraffin reservoir lid; opens to allow addition of paraffin to the
system
.6.
Paraffin reservoir filter access
.7.
Rear doors, equipped with safety interlocks; give access to
robotic system
.8.
External computer system connections for:
PS2 external pointing device, such as a mouse
PS2 keyboard, to supplement on-screen keypads
RJ-45 Port
USB 2.0 peripherals, including USB ‘key’ drives used to
export log files and other data
.9.
Main power switch
.10.
Power cord
.11.
Input Door, for access to the magazine loading area
.12.
Disposable Paraffin Trough
.13.
Four removable output doors, each holding up to 32 blocks
4
3
1
2
5
6
9
8
10
7
11
13
12
