INSTALLATION
2.2 Revised 08/08/2013

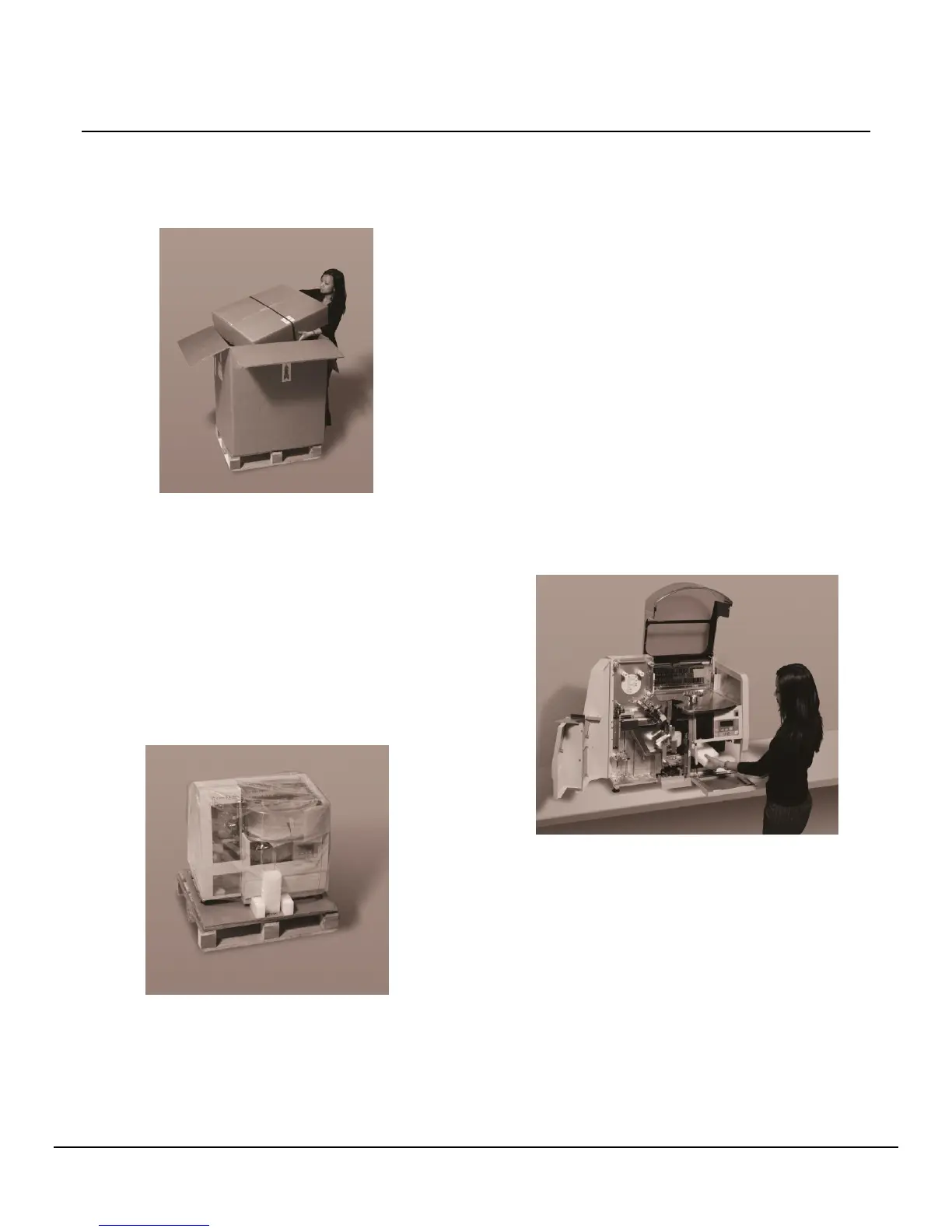

3. Remove the lid of the box and remove the accessory
box positioned under the lid (Figure 2-C).
Figure 2-C
4. Remove the Styrofoam pieces surrounding the
instrument. The outer cardboard box may now be
lifted up and away from the instrument.
5. The instrument is positioned on the pallet and is
protected by a plastic cover and Styrofoam packing
material. If the Styrofoam has not already been
removed, remove it from the corners of the unit.
Remove the protective wrapping exposing the
instrument (Figure 2-D).
Figure 2-D
6. Carefully lift the coverslipper from the pallet and place
it on a sturdy, level surface capable of supporting 75
kg (165 lbs.).
CAUTION: The instrument is very heavy and large;
therefore, it is strongly recommended that it always
be lifted and transported by at least two people, one
positioned on each side of the instrument.
CAUTION: Always transport the instrument in an
upright position.
7. Remove any adhesive tape from the outside of the
instrument.
8. Open the loading area door and remove any packing
material.
9. Open the film door and carefully remove all adhesive
tape securing the components. Remove the
Styrofoam wedges and foam from the coverslipping
area (Figure 2-E). Be sure not to dispose of these
items until proper operation is verified.
Figure 2-E
NOTE: Be certain that all tape and foam is removed from
the instrument prior to operation.
