Section 1
Revised 08/08/2013 1.7
Description of Control Panel
Once the power is turned on, the instrument will
initialize and perform a series of system checks as it
prepares for operation.
After the initialization process is complete, the
instrument goes into standby mode and is ready for
operation. From the standby screen, a series of operations
can be selected.

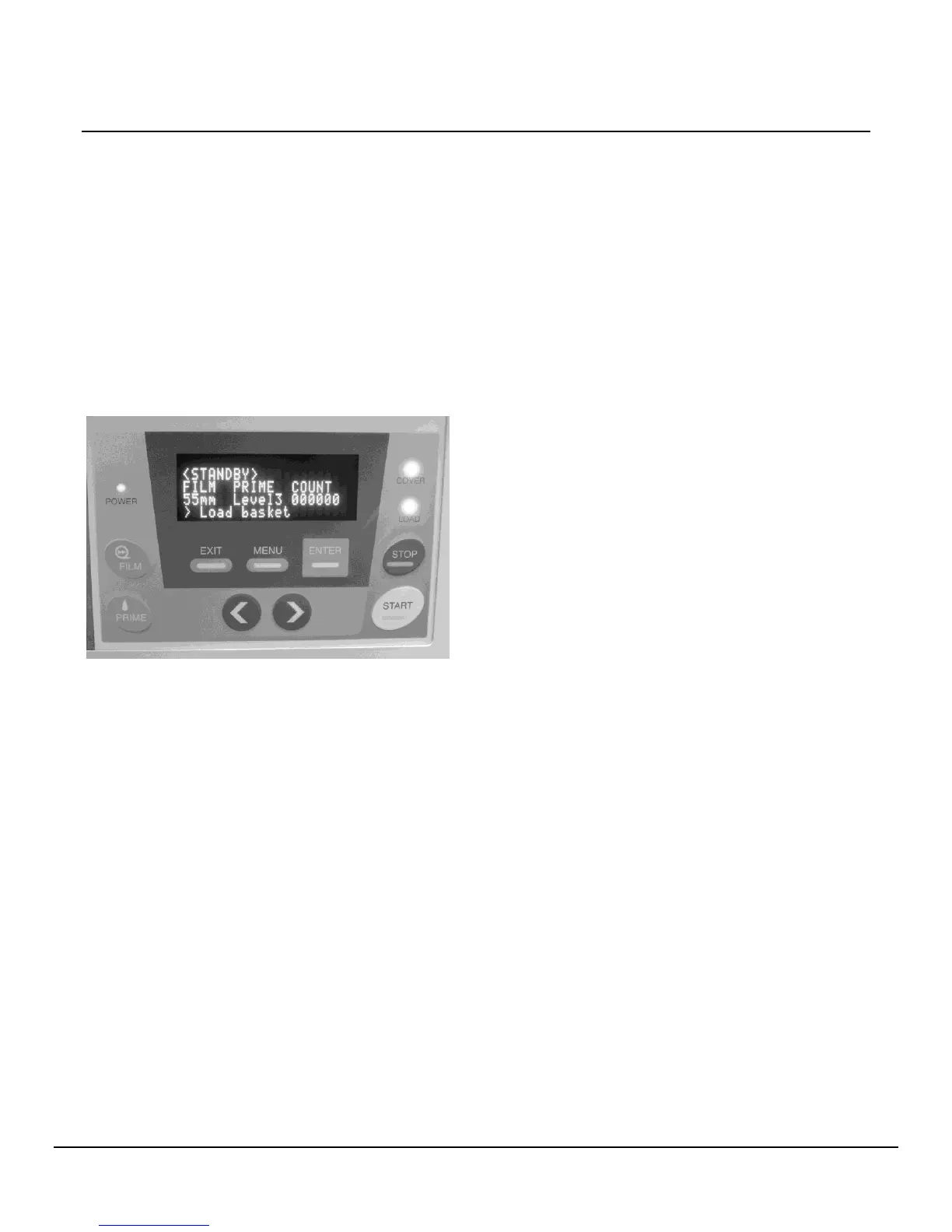

Directly under the LCD display are three function keys
labeled: [Enter], [Menu], and [Exit] (Figure 1-K).
Figure 1-K
The [Enter] key is used to save changed settings and
to return to the previous screen. The [Menu] key takes the
user to the menu screen. It provides access to the
following functions:
Change dispensing volume
Change film length
Verify dispensing action
Reset user count
Set key sound
Select alarm sound
View software version #
The [Exit] key is pressed to return to the previous
screen without saving any changed settings.
Directly beneath these three keys are the left [<] and
right [>] arrow keys. The [<] key, when used in the menu
screen, moves the selection item upward or to the left.
(Holding the key down will cause a continuous action).
The [>] key moves the selection item downward or to the
right. (Holding the key down will cause a continuous
action).
On the left side of the control panel are two keys,
[Film] and [Prime]. After the film is loaded up to the
coverslipping staging area, pressing the [Film] key will
capture the film and begin to feed it automatically. The
[Prime] key is pressed to dispense the xylene using the
set xylene dispensing level.
Located on the right side of the control panel are the
[Stop] and [Start] keys. When the instrument is in
operation, the [Stop] key is used to stop operation already
in progress. It is also used to stop the xylene priming
action. The coverslipper will begin routine operation, start
of origin return action, or priming action when the [Start]
key is pressed.
There are three LED’s located on the control panel.
The Cover LED, the Load LED, and the Power LED. The
Cover LED lights when the cover on the top of the
instrument is ready to open. The Load LED lights when
the door of the loading station is ready to open. The
Power LED remains lit when power is being supplied to
the instrument.
