Rear of the Instrument
The power cord can be installed on the rear of the
instrument (..
1
.., Figure 1-I). The other end of the power
cord attaches into an appropriate grounded AC electrical
outlet. There are two fuses ..
2
.. located to the left of the
power cord inlet.
Also located on the rear of the instrument is the
connector port ..
3
.. for the link cable for the Tissue-Tek
®
Prisma
®
Automated Slide Stainer.
Control Panel
All operating functions are controlled through the
control panel (Figure 1-J). There are nine keypad switches
and three LED’s interfacing with the instrument software.
A four-line LCD provides the user with information such
as, current status, setup menu option, error codes and
messages.

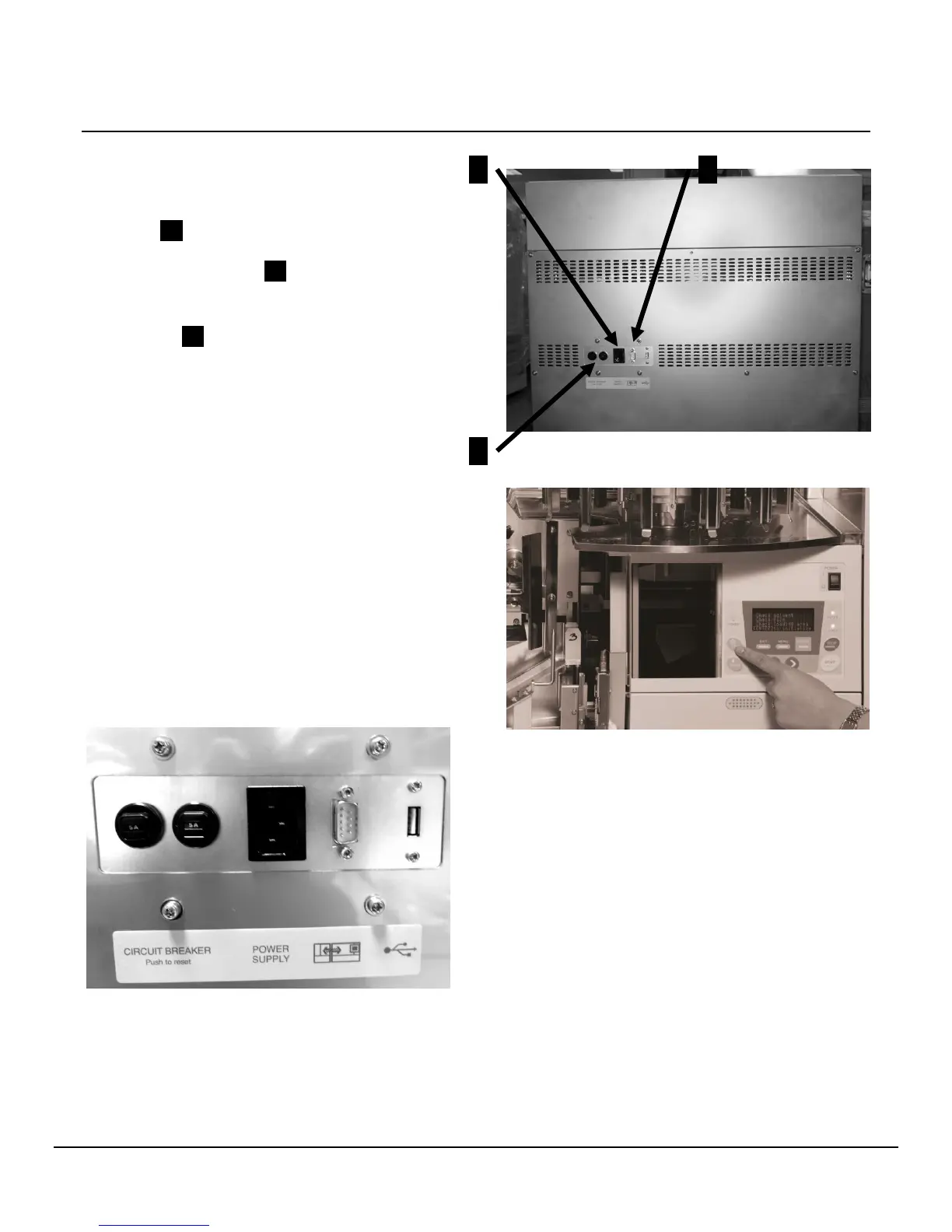

Rear Panel Outlets (Figure 1-I).
Figure 1-I
Figure 1-J
1
3
2

Sakura Tissue-Tek Film 4740 Specifications

General

Brand	Sakura
Model	Tissue-Tek Film 4740
Category	Medical Equipment
Language	English
