EN | 15SMARTY v2023.1

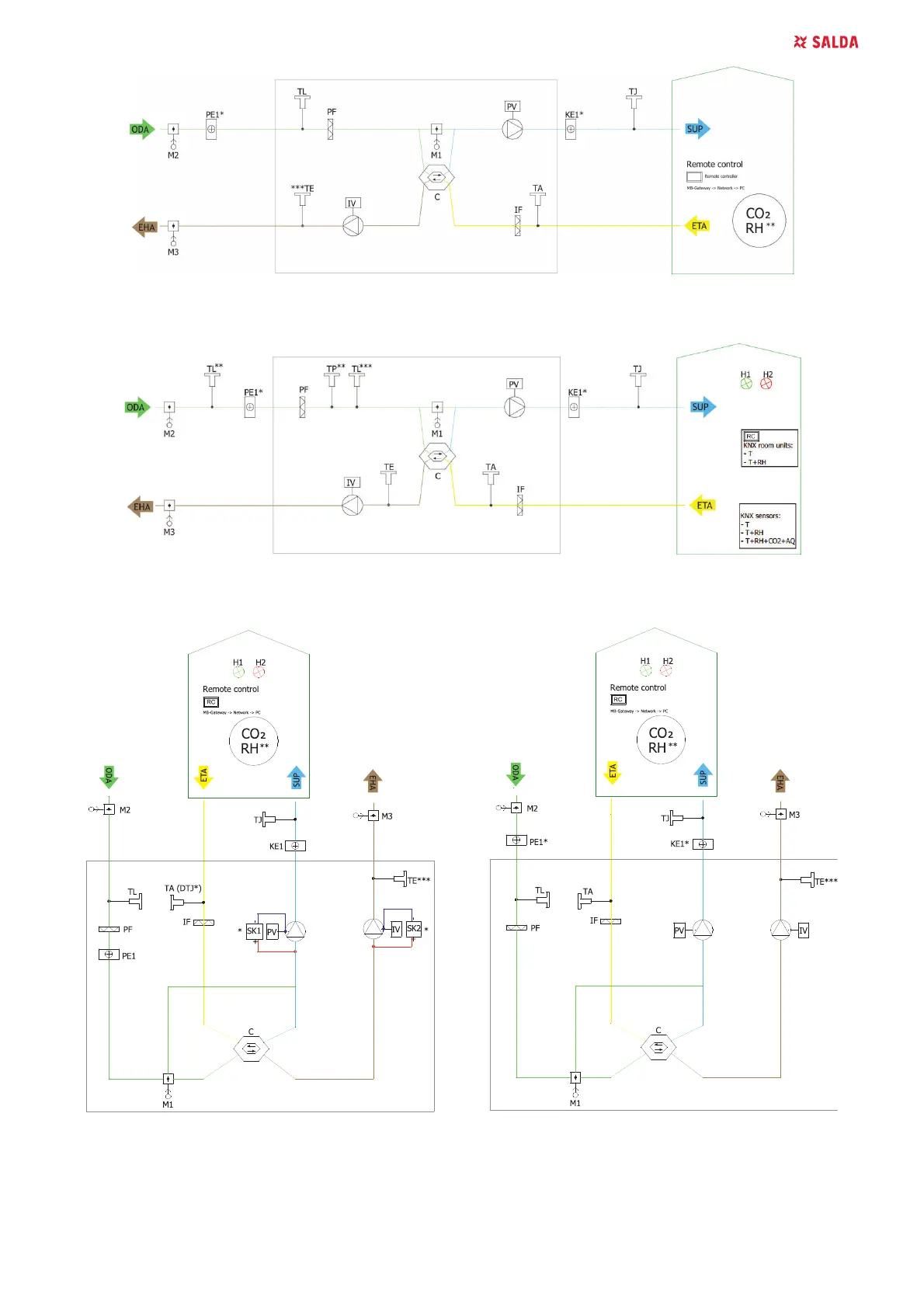

Figure 5.4.2. SMARTY XP 1.2 (* Only heater or preheater can be connected at a time; ** Check the manual for details;
([KDXVWDLUVHQVRULVQRWLQFOXGHGZLWKDGHYLFHDQGVKRXOGEHRUGHUHGDVDQDFFHVVRU\
Figure 5.4.3. SMARTY XP S300 (* Only heater or preheater can be connected at a time; ** Components connection only with PE1;
*** Components connection only without PE1)
Figure 5.4.4. 60$57<;9PLQL0&%$YDLODEOHLQ;9;9)
1.1 models; ** Check the manual for details; *** Optional)
Figure 5.4.5. SMARTY XV miniMCB basic (* Only heater or pre-
heater can be connected at a time; ** Check the manual for details;
*** Optional)
