Salda SMARTY XP User Manual

EN | 27SMARTY v2023.1
SMARTY XP:

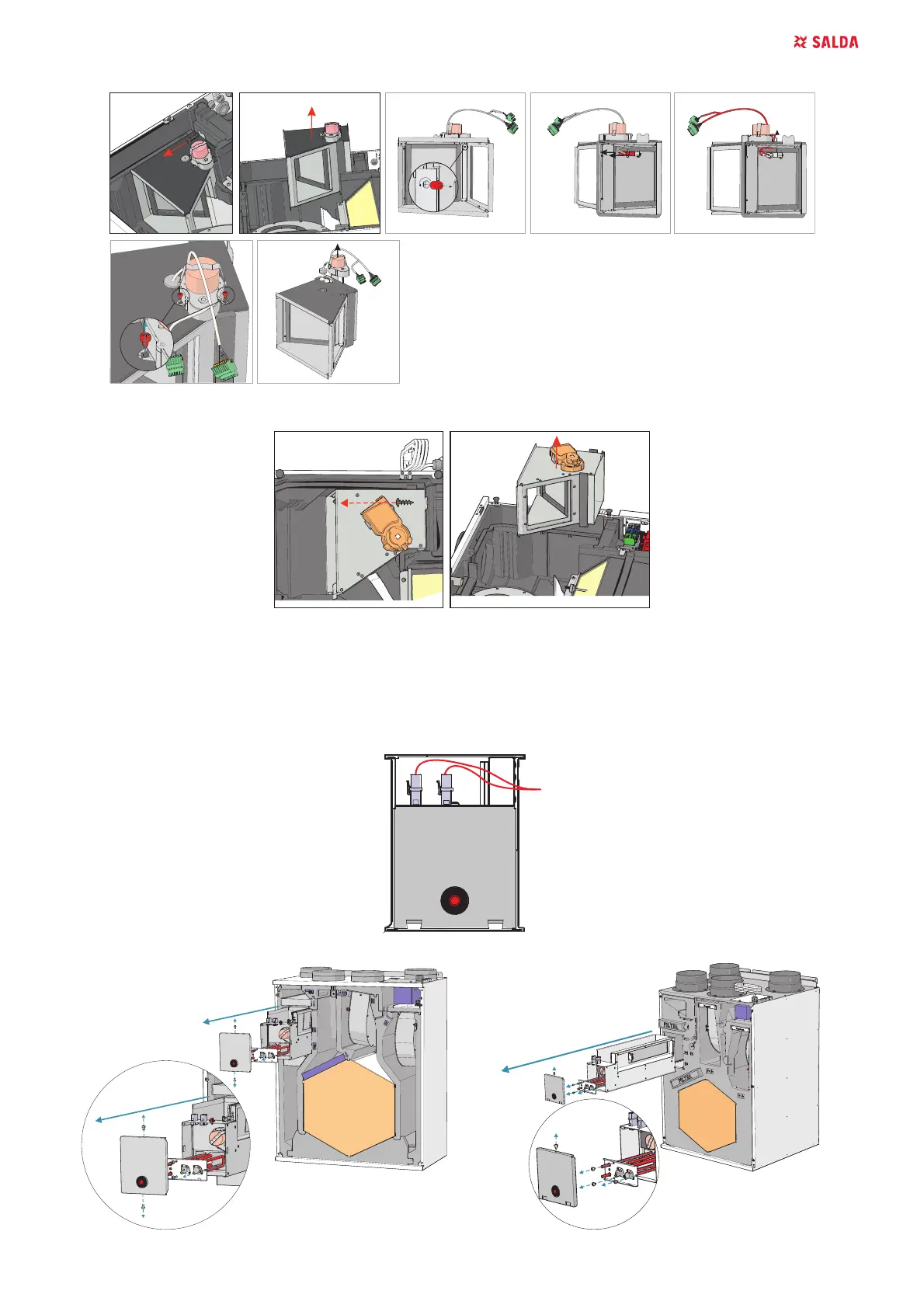

Figure 6.7.1. Smarty XP bypass damper
Figure 6.7.2. Smarty XP S300 bypass damper
SMARTY XV (version 1.1 / 1.2):
• ,IWKHPDQXDOSURWHFWLRQLVDFWLYDWHGFKHFNIRUDIDXOWEHIRUHSUHVVLQJWKH5(6(7EXWWRQ,IWKHIDXOWLVLGHQWL¿HGDIWHULWKDVEHHQUHFWL¿HGSUHVV
WKH5(6(7EXWWRQXVLQJDVFUHZGULYHURUVLPLODUREMHFW
• Bypass damper and pre-heater are mounted on one block. The pre-heater shall be disconnected by removing X29 connector. The bypass damp-
er shall be disconnected by removing X25.
X29
X25
Figure 6.7.3. Bypass damper and pre-heater on one block
Figure 6.7.4. Smarty 2X V 1.1/1.2 Figure 6.7.5. Smarty 3X V / 4X V F2 1.1/.12
