Salda SMARTY XP User Manual

EN | 9SMARTY v2023.1
+
)
/
G G
683
2'$
(7$
:
G G
(+$
GQ

'D

'
***
' ' ' '

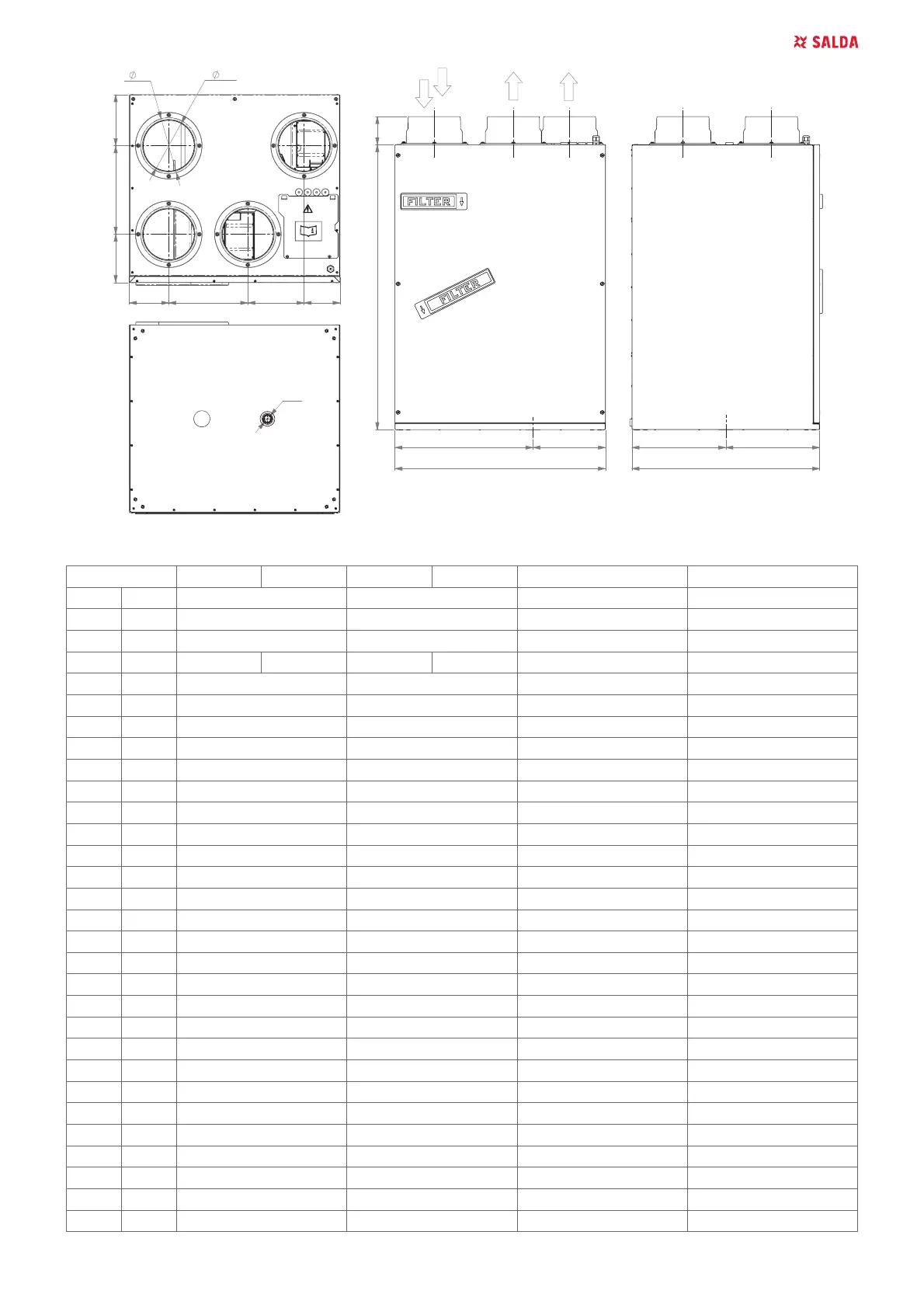

Figure 4.2.6. Smarty 3X V / 4X V S300
SMARTY 2X P 1.1/1.2 2X P S300 2X V 1.1/1.2 2X V S300 3X P / 4X P 3X V / 4X V
L [mm] 1010 595 1228 599
W [mm] 590 315 690 538
H [mm] 250 698 324 810
H2 [mm] - 35 - 68 - -
øD [mm] 125 125 160 160
øDa [mm] 160 100 150 150
F [mm] 39 34 80 80
dn - G1/2 G3/8 G1/2 G1/2
dna - G3/8 - G3/8 -
A1 [mm] 21 - 21 -
A2 [mm] 1047 - 1268 -
A3 [mm] 21 - 21 -
E1 [mm] 29 - 37 -
E2 [mm] 532 - 611 -
E3 [mm] 29 - 37 -
d1 [mm] 379 394 419 391
d2 [mm] 211 201 271 206
d3 [mm] - 163 - 267
d4 [mm] - 152 - 271
da1 [mm] 684 - 817 -
da2 [mm] 326 - 409 -
D1 [mm] 115 83 128 112
D2 [mm] 360 112 429 112
D3 [mm] 115 158 128 225
D4 [mm] - 160 - 160
D5 [mm] - 83 - 102
G1 [mm] 113 77 148 145
G2 [mm] 136 155 170 252
G3 [mm] - 81 - 137
Weight [kg] 40 25 53 46
