Salda SMARTY XV Series User Manual

11
Smarty 2X/3X V
www.salda.lt

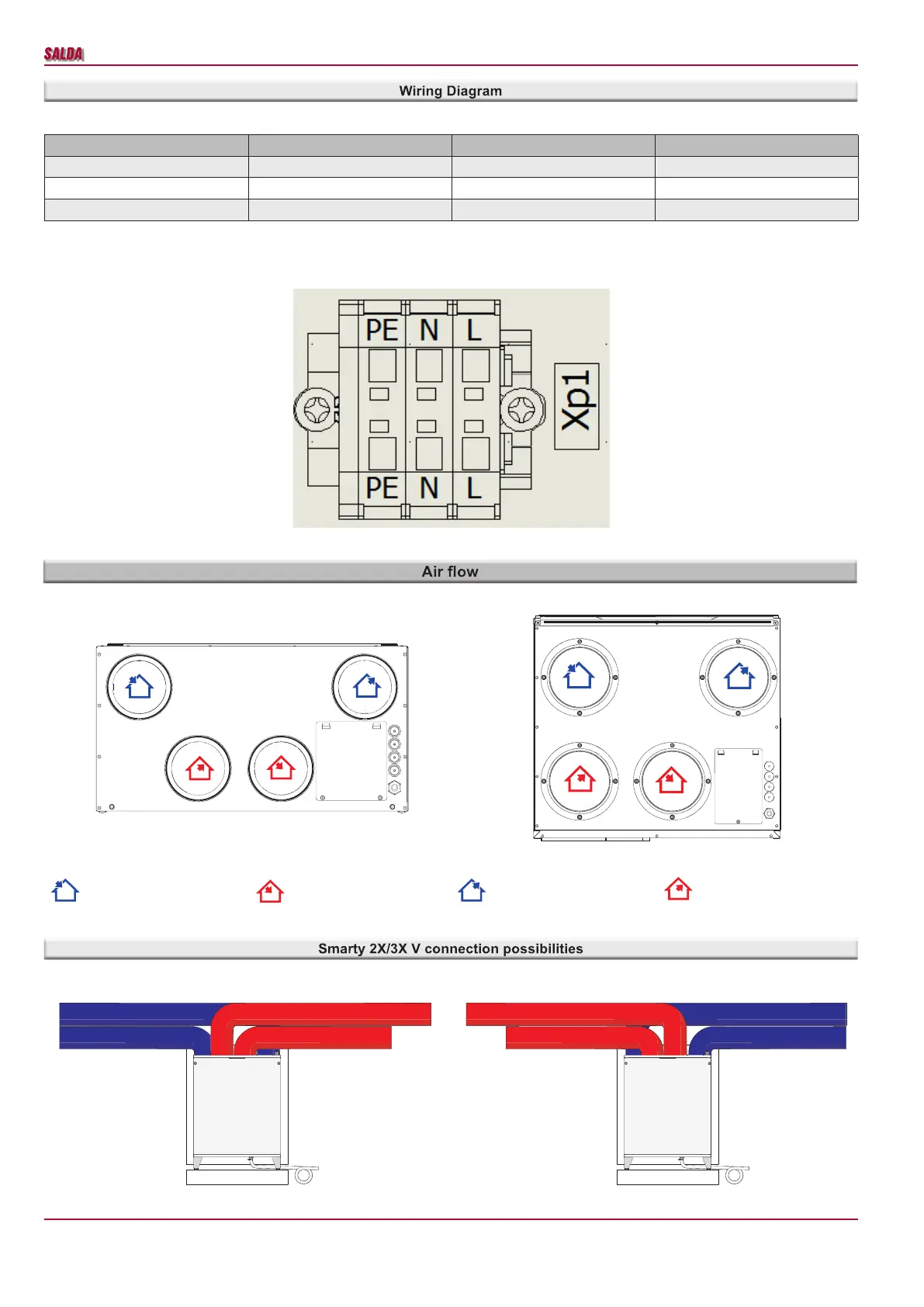

Electrical equipment connection to the control board terminals. Control board connectors shall be of the following cross sectional area.
Control board 0,5 mm
2
1,5 mm
2
2,5 mm
2
miniMCB X1, X2, X3, X4, X5, X6, X7 X9, X13, X14, X15, X16 X10, X11, X12, X17
miniEX1 X19, X20, X21, X23 - -
Power supply - - Xp1
Automation E zone, connector Xp1 general power connection to the unit ~1/230 VAC.
Smarty 2X V Smarty 3X V
Exhaust air Supply air Outdoor air air Extract
Right side connection Left side connection
