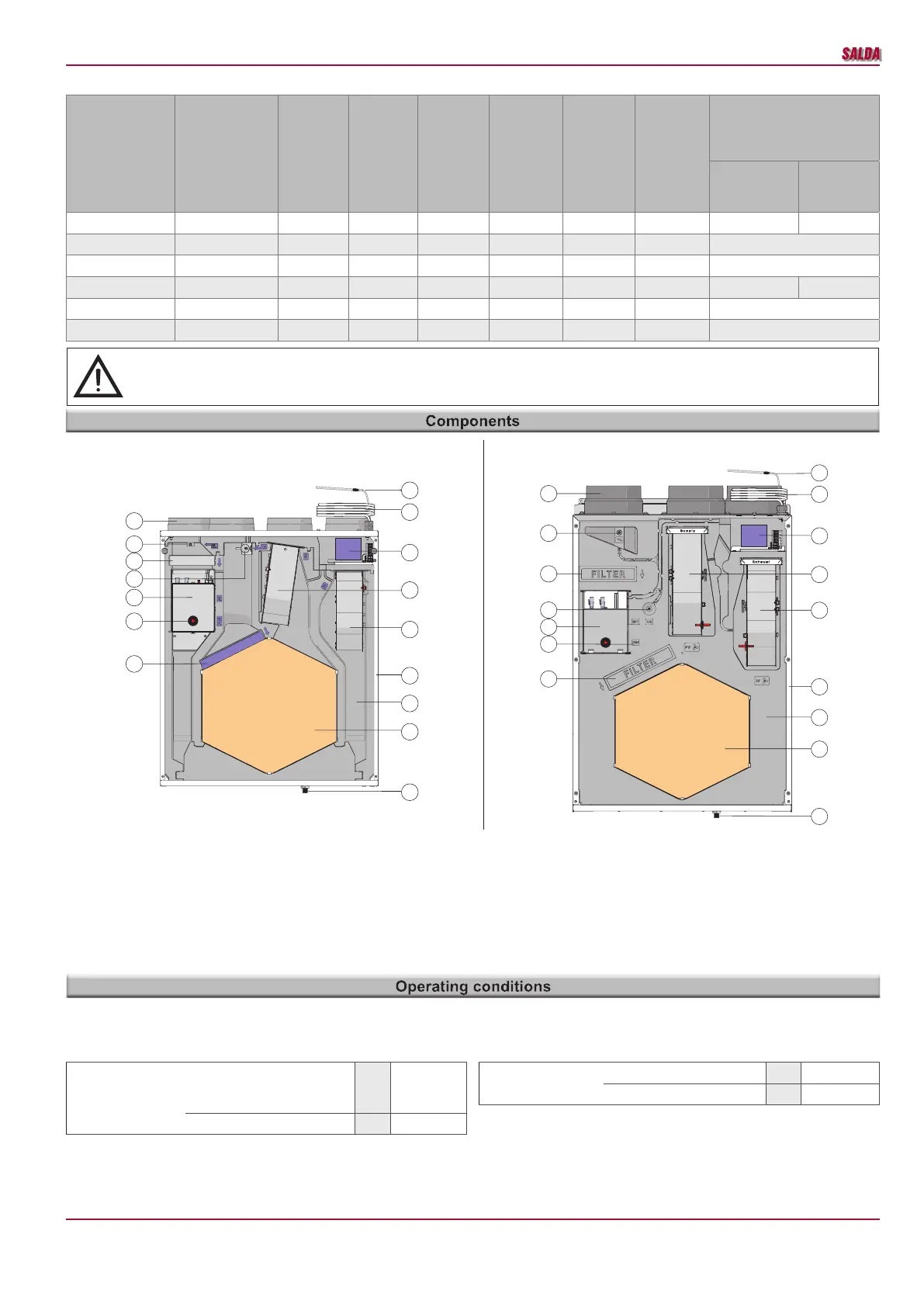

Salda SMARTY XV Series User Manual

6
Smarty 2X/3X V
www.salda.lt
1. Flange 4 pcs.
2. Outdoor air temperature sensor (TL)
3. Outdoor air lter (G4/(F7 - optional)) and the EPP cover*
4. Extract air sensor (TA)**
5. Bypass damper (M1)**
6. Preheater (PE1)**
7. Extract air lter (G4) and the EPP cover*
8. Supply air sensor
9.CE7/7 power supply cable - 3 m.
10. Control board.
11. Supply air fan (PV)**
12. Exhaust air fan (IV)**
13. Galvanized steel casing
14. EPP casing
15. Heat exchanger
16. Condensate tube plugs
*Filter EPP cover only on Smarty 3X V.
** Depends on unit type.
Smarty 2X V Smarty 3X V
1
2
3
4
5
6
7
15
14
13
12
11
8
9
10
1
2
3
4
5
6
7
15
14
13
12
11
8
9
10
16
16
1
2
3
4
5
6
7
15
14
13
12
11
8
9
10
1
2
3
4
5
6
7
15
14
13
12
11
8
9
10
16
16
Product name
Control board
Type
Heat recovery
Temperature
control
Bypass damper
Pressure sensor
(lter pollution
monitoring)
Integrated pre-
heater
Optional heating elements
*- only pre-heater or
heater
Duct based
Air Pre-
Heater
Duct based
Air Heater
Smarty 2X V 1.1 Mini MCB Premium + + + - + - +
Smarty 2X V 1.2 Mini MCB Basic Advanced + + + - - +*
Smarty 2X V 1.3 Mini MCB Basic Basic + + - - - +*
Smarty 3X V 1.1 Mini MCB Premium + + + + + - +
Smarty 3X V 1.2 Mini MCB Basic Advanced + + + - - +*
Smarty 3X V 1.3 Mini MCB Basic Basic + + - - - +*
Smarty 2XV, 3XV are available in three versions:
• Unit is designed to operate only indoors.
• It is forbidden to use the unit in potentially explosive environment.
• Unit is designed to supply/extract only clean air (free of chemical compounds causing metal corrosion, of substances aggressive to zinc, plastic and
rubber, and of particles of solid, adhesive and  bred materials).
Outdoor
- temperature min./max. [°C]
-5/ +40*
-15 / +40**
-40 / +40***
- humidity [%] 90
* - Outdoor air temeperature without preheater (Salda Antifrost o󰀨)
** - with integrated preheater (Smarty 2X/3XV 1.1) or Smarty 2X/3XV 1.2/1.3 (Salda Antifrost on)
*** - with optional preheater on duct
Salda Antifrost uses dis-balancing of the air ow and it may cause negative pressure in premises.
Extract
- temperature min./max.*
[°C] +15 / +40
- humidity [%] 60
Not suitable for swimming pools, saunas and other
similar facilities.
