Salda SMARTY XV Series User Manual

38
Smarty 2X/3X V
www.salda.lt
DRAWN BY
CHECKED BY
SIGNATUREDUTIES / NAME DATE
UAB"SALDA"
Drawing #
Book #
APPROVED BY
1 2 3 4 5 6 7 8 9 10
External preheater
SP45
1
01
2016-03-22
2016-03-22
X2:5 - GND
X2:6 - AO3(0-10V)
-N1
miniMCB V0.3
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N1
miniMCB V0.3

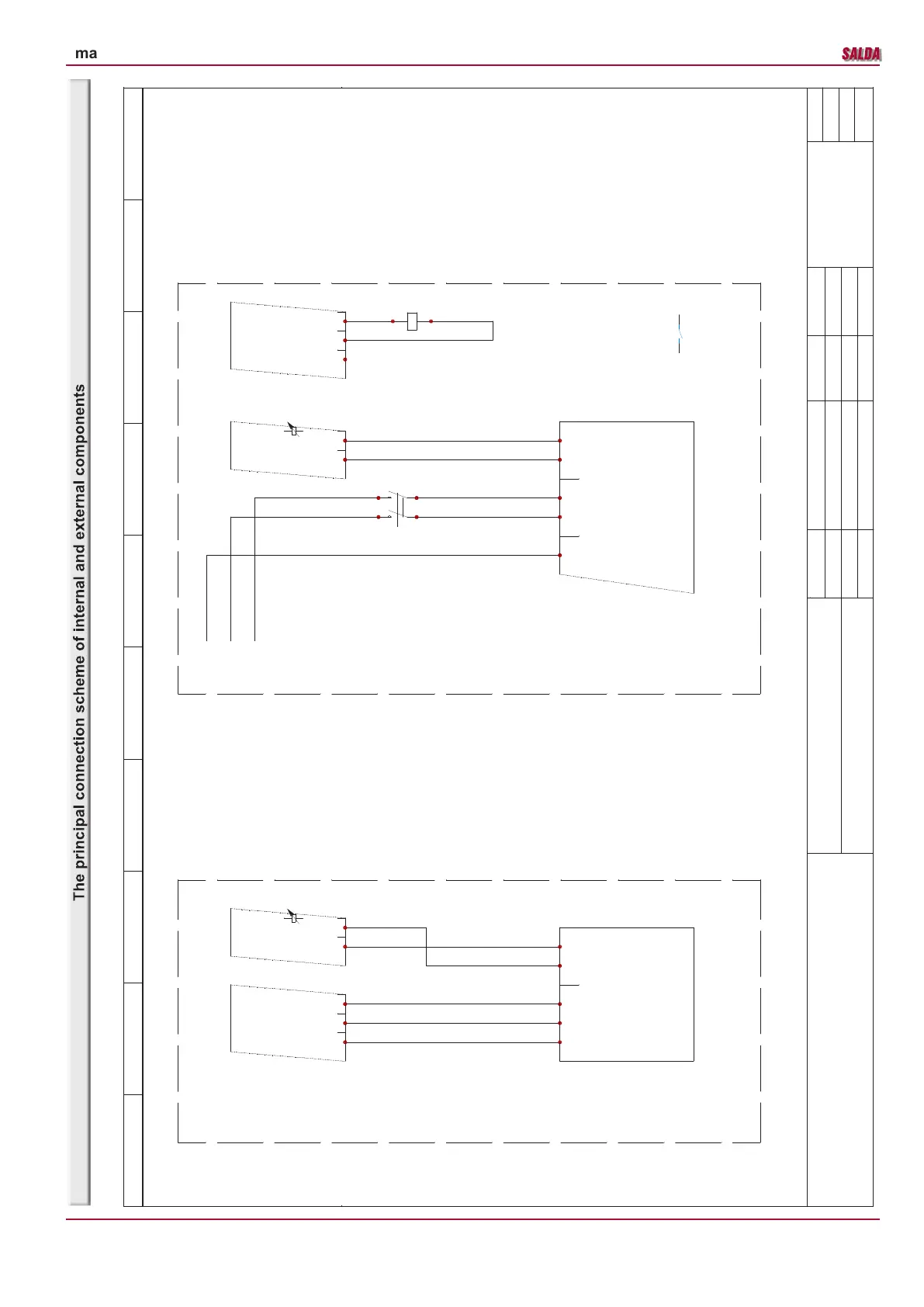

External preheater.
Control 0-10V
Power up to 2kW, 1f/230V
PE
N
L1
0-10V
GND
PE1
EKA NIS ... -1F
Max. 2kW/230V
X12:1 - PE
X12:2 - N(L1)
X12:3 - DO2(L(L2))
-N2
miniMCB V0.3
X2:5 - GND
X2:6 - AO3(0-10V)
-N2
miniMCB V0.3
External preheater.
Control 0-10V
Power over 2kW, 2f/400V
-K1
A1
A2
230VAC
1114
-K1
PE
L1
L2
11-GND
12-0-10V
-PE1
EKS NIS ... -2f
-K1
1
2
3 4
PE L1 L2
