Salda SMARTY XV Series User Manual

52
Smarty 2X/3X V
www.salda.lt
LED indication
miniMCB miniEX1
LED1 3.3V miniMCB power indication (1W mode) LED1 EX1 status LED
LED2 12V miniMCB power indication
LED3 3.3V miniMCB power indication (ON mode)
LED4 MiniMCB status LED
LED5 Communication line Transmit indication
LED6 Communication line Receive indication
LED7 24V peripheral POWER ON indication

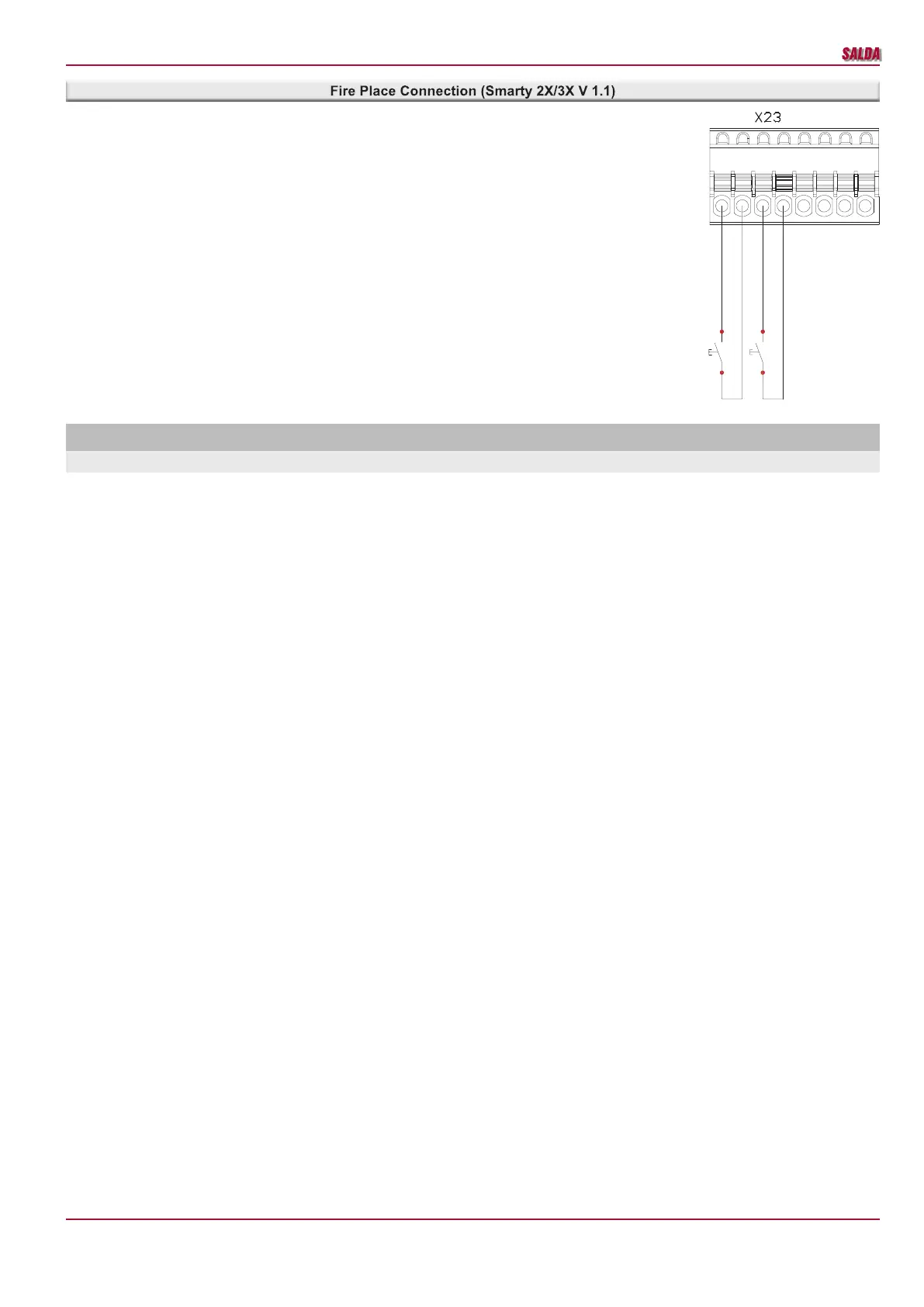

Wiring diagram.
Automation controller C zone, X23 connector.
1 2 3 4 5 6 7 8
-Fire Place II
DI4
+12VDC
+12VDC
DI3
-Fire Place I
