Smarty 2X/3X V
www.salda.lt

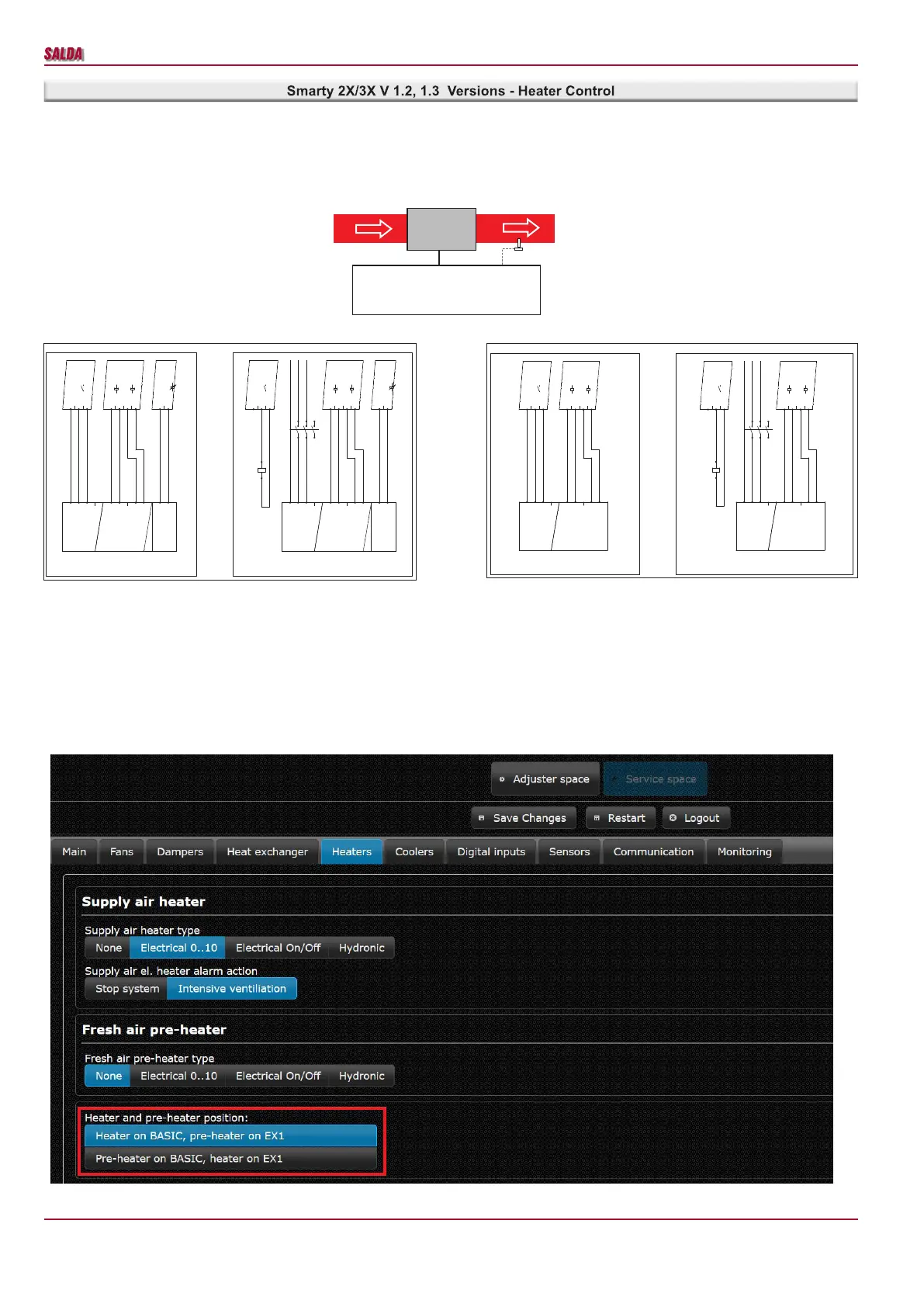

Smarty 2X/3X V 1.2 and 1.3 versions of the product can be connected which an electrical heater, which can be controlled by
- On/O󰀨 signal EKA;
- 0-10V signal EKA NIS.
Installation diagram
The electrical heater shall be installed in the air duct. The arrangement procedure in the direction of air: electrical heater -> TJ supply air sensor.
KE
Mini MCB
TJ
Connection diagrams SP55 and SP56:
Since a pre-heater is to be connected according to the factory settings, settings should be changed in the environment of the MB-Gateway WEB ap-
plication service or on the Ptouch control panel
1
.
Settings in the environment of the MB-Gateway WEB application service
Change the settings as follows:
• Service password 4444;
• Service -> Heaters -> Heater and pre-heater position;
• Select either the heater or pre-heater to be switched on MiniMCB basic.
1
With the Stouch control panel, it is impossible to change the settings
