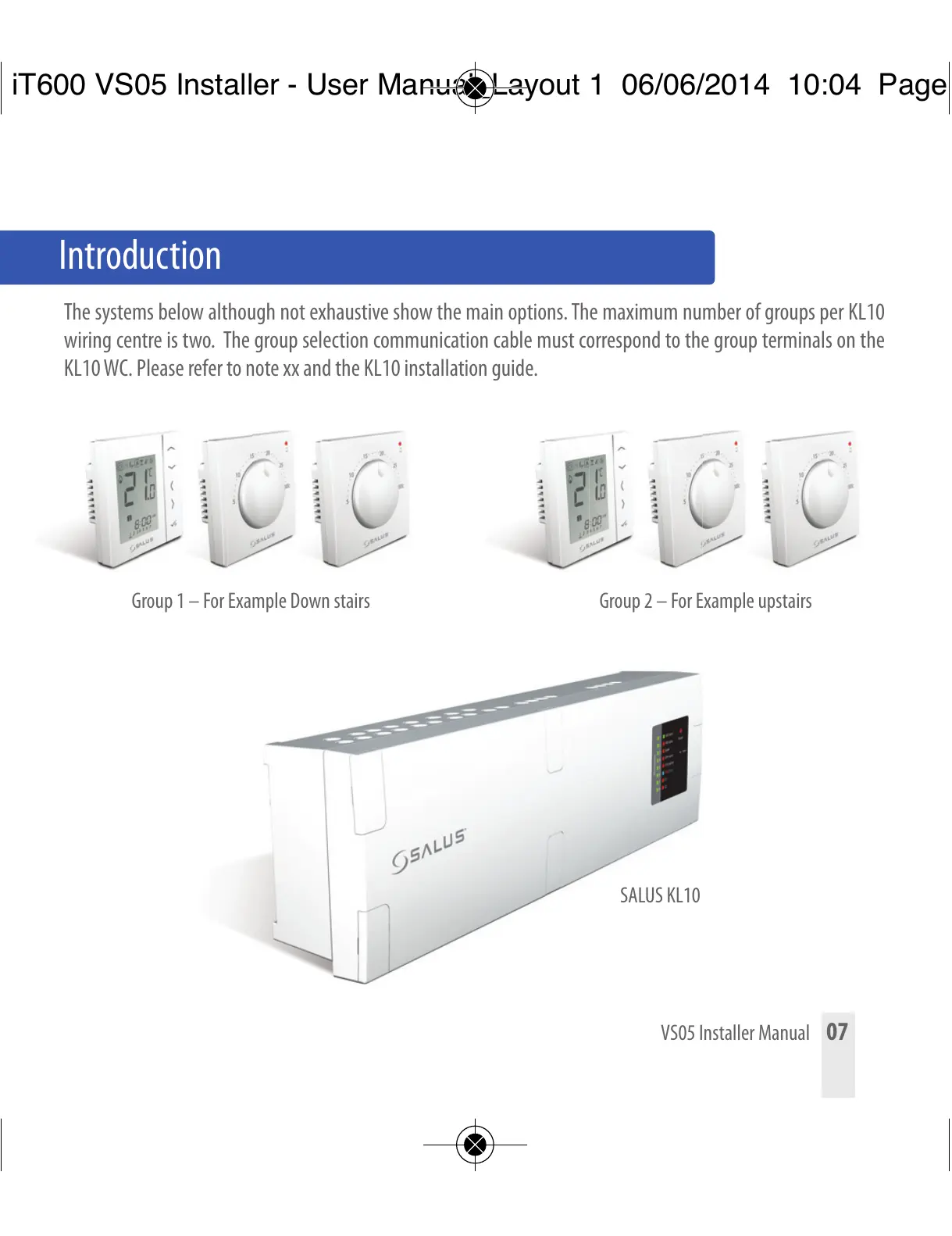

Introduction
The systems below although not exhaustive show the main options. The maximum number of groups per KL10
wiring centre is two. The group selection communication cable must correspond to the group terminals on the
KL10 WC. Please refer to note xx and the KL10 installation guide.
Group 1 – For Example Down stairs Group 2 – For Example upstairs
SALUS KL10
