Salus RT310RF User Manual

13

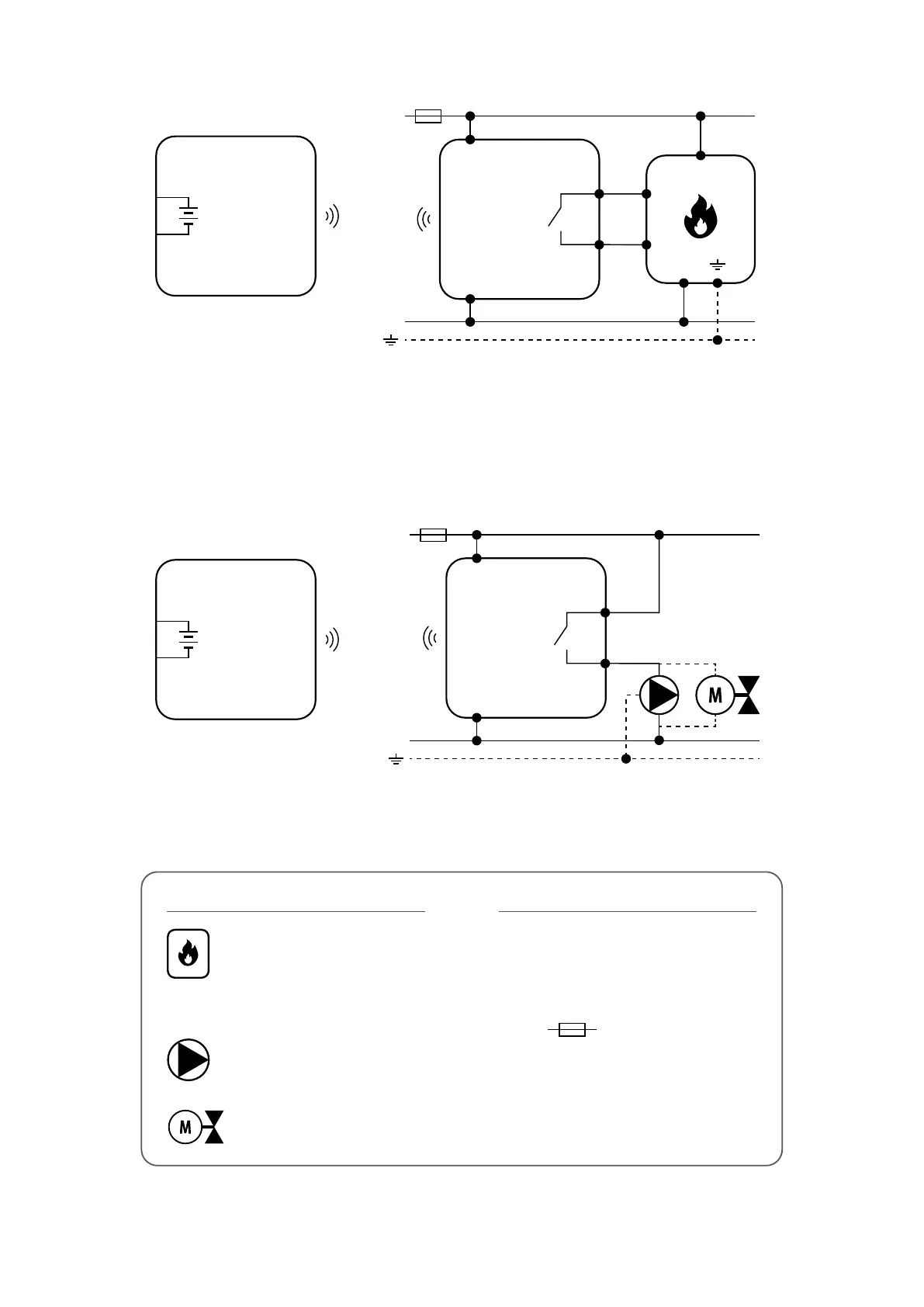

4.4 Connection description
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510
RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510
RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
RT310TX
L
AC 230V
COM
lub
NO
N
N
L
L
N
L
AC 230V
N
COM
NO
RXRT510RXRT510
N
L
MAX
16 (5) A
PODŁĄCZENIE KOTŁA *
3V
2 x AA
BOILER CONNECTION*
or
L, N - power supply 230V
COM, NO - voltage-free output
- fuse
Legend: Symbols explanation:
Pump
Valve actuator
Boiler - Boiler connection*
- Boiler’s contacts for ON/OFF
thermostat (according to the
boiler’s instructions)

Salus RT310RF Specifications

General

Type	Wireless thermostat
Frequency	868 MHz
Temperature Range	5°C to 35°C
Power Supply	2 x AA batteries
Display	LCD
Mounting	Wall-mounted
Programmable	Yes
Frost Protection	Yes
Holiday Mode	Yes
Control Mode	Manual
Communication	RF (Radio Frequency)
Range	Up to 30 meters (open space)
Compatibility	Boilers
Dimensions	120mm
