In order to set swath width, adjustment of swath guides (1) should be performed (Fig. 27) (for:
KDT 220 W, KDT 260 W):
❑ loosen eye screw (2) of the swath guide,
❑ set the swath guide (1) as needed,
❑ tighten screw (2).

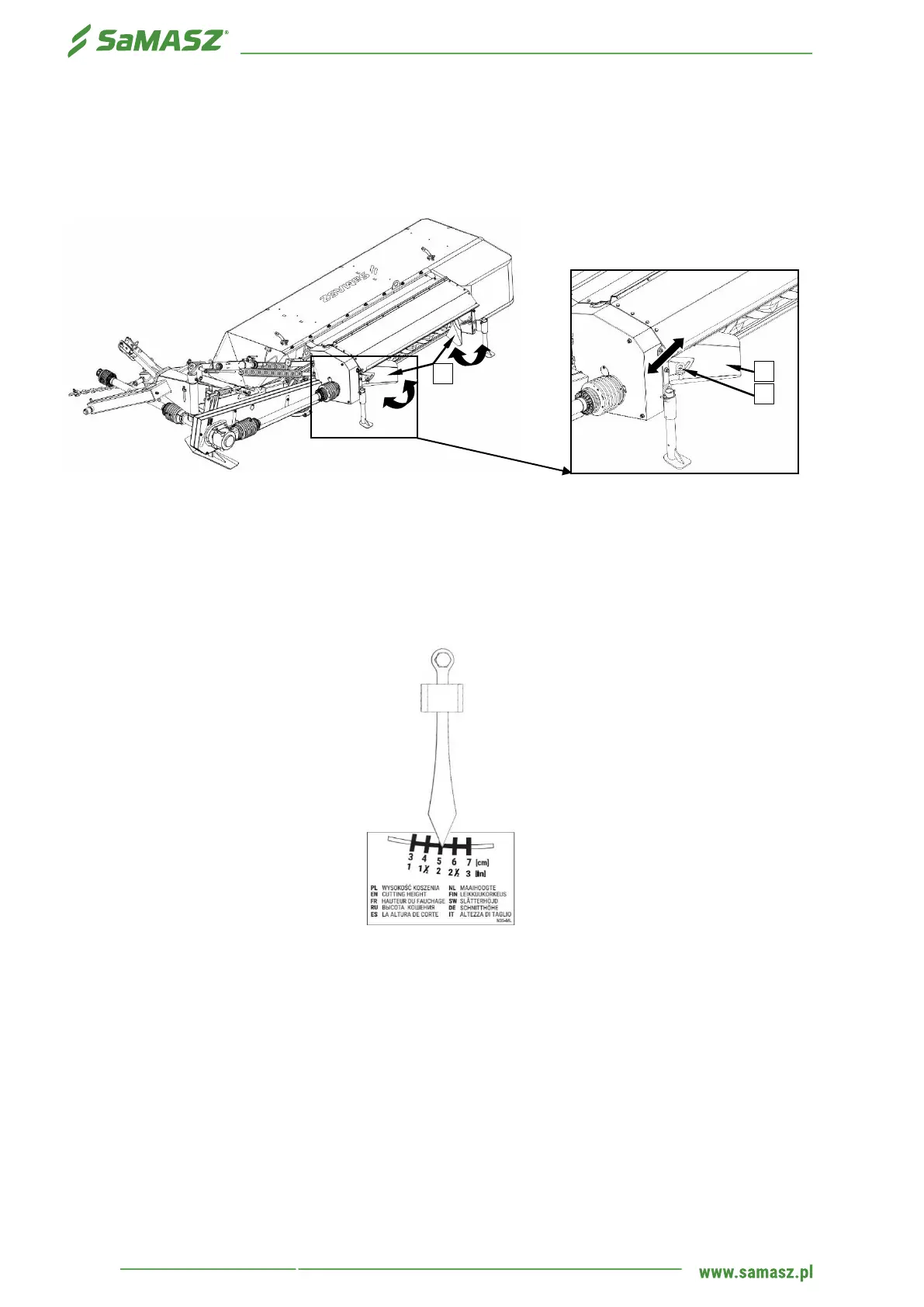

Fig. 27. Adjustment of swath guides: 1- swath guide, 2 - adjustment screw
6.5. Adjusting the cutting height
By means of upper link S (Fig. 8) adjust the cutting height. Extending the link S increases the
cutting height and shortening the link reduces it. Cutting height is shown by the scale placed on the 3-
point linkage frame (Fig. 28), recommended height is 4.5÷7 cm (1.5''÷3'').
Fig. 28. Cutting height scale
6.6. 3-point linkage support chain
Support chain is used to ensure 3-point linkage frame of the mower is always at the same height,
to set the mowing unit parallel to the ground and to relieve the hydraulic lift of the tractor.
When connecting mower to the tractor, the hanger plate A (Fig. 29) of chain and put on the pin B
of upper link. If the 3-point linkage frame is more than ~40 cm / 1' 3.7'' above the ground, adjust the
chain.
