3.2. Design and working principle
3.2.1. Rear disk mower

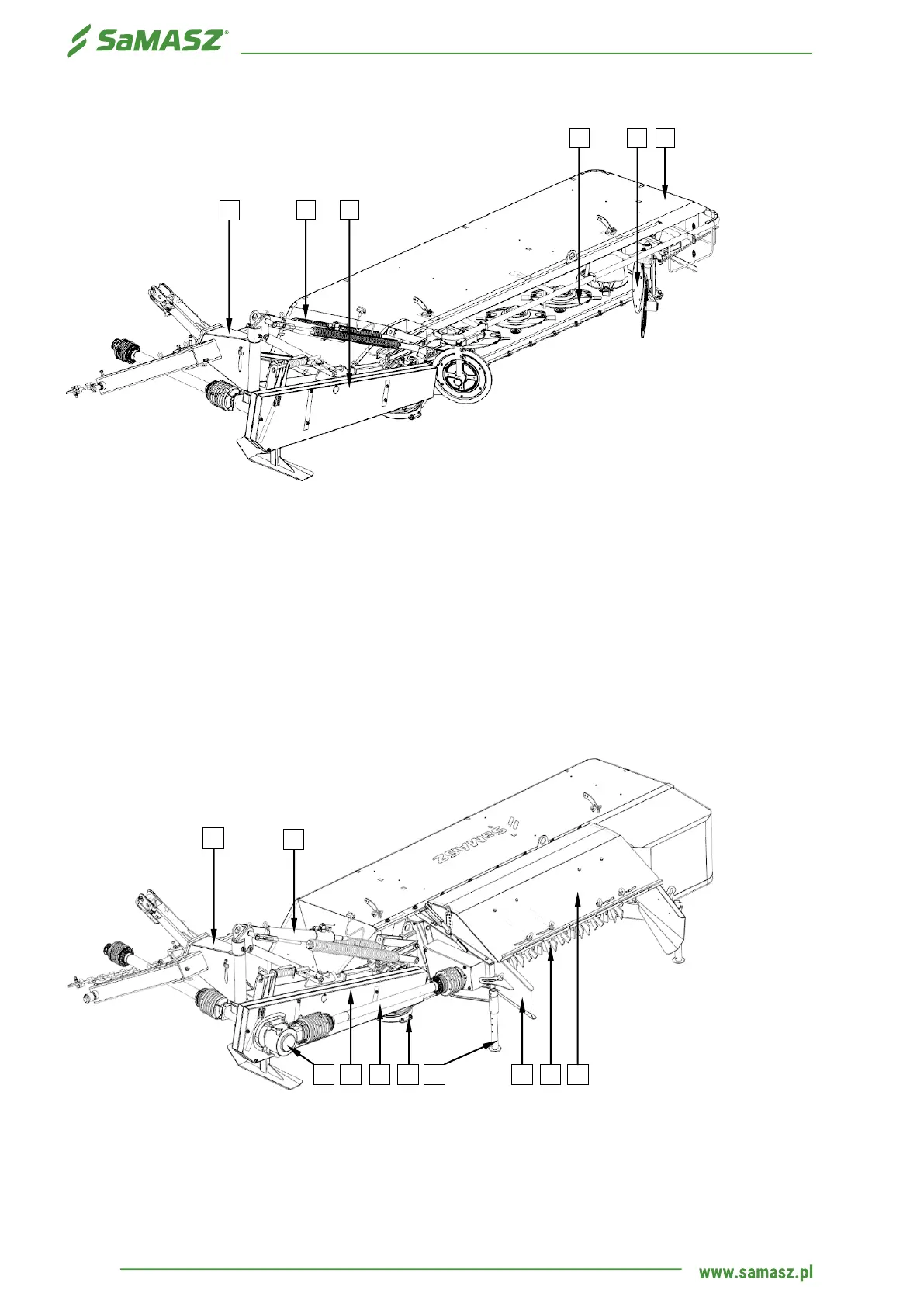

Fig. 3a. Parts of KDT rear disc mower
1 – 3-point linkage frame
2 – Hydraulic cylinder with support springs
3 – V-belt drive
4 – Cutterbar
5 – Swath discs
6 – Safety curtain
3-point linkage frame (1) enables attachment of the mower to tractor’s 3-point linkage. Drive from
tractor’s rpm is transmitted through V-belt drive (3) on the cutterbar (4). Hydraulic cylinder (2) is used
to adjust the mower to working position. It is supplied from outer hydraulics of the tractor. Main frame,
on which the cutterbar (4) is situated, is supported by the springs (2). Swath discs (5) are mounted on
the main frame.
3.2.2. Rear disk mower with tine conditioner
Fig. 3b. Parts of KDT rear disc mower with tine conditioner
1 – 3-point linkage frame
2 – Hydraulic cylinder with support springs
3 – Axis gear
4 – Cutterbar
5 – Swath discs
6 – Tine condioner safety curtain
7 – Tine conditioner
8 – V-belt drive
9 – Tine condioner PTO shaft
10 – Support legs
