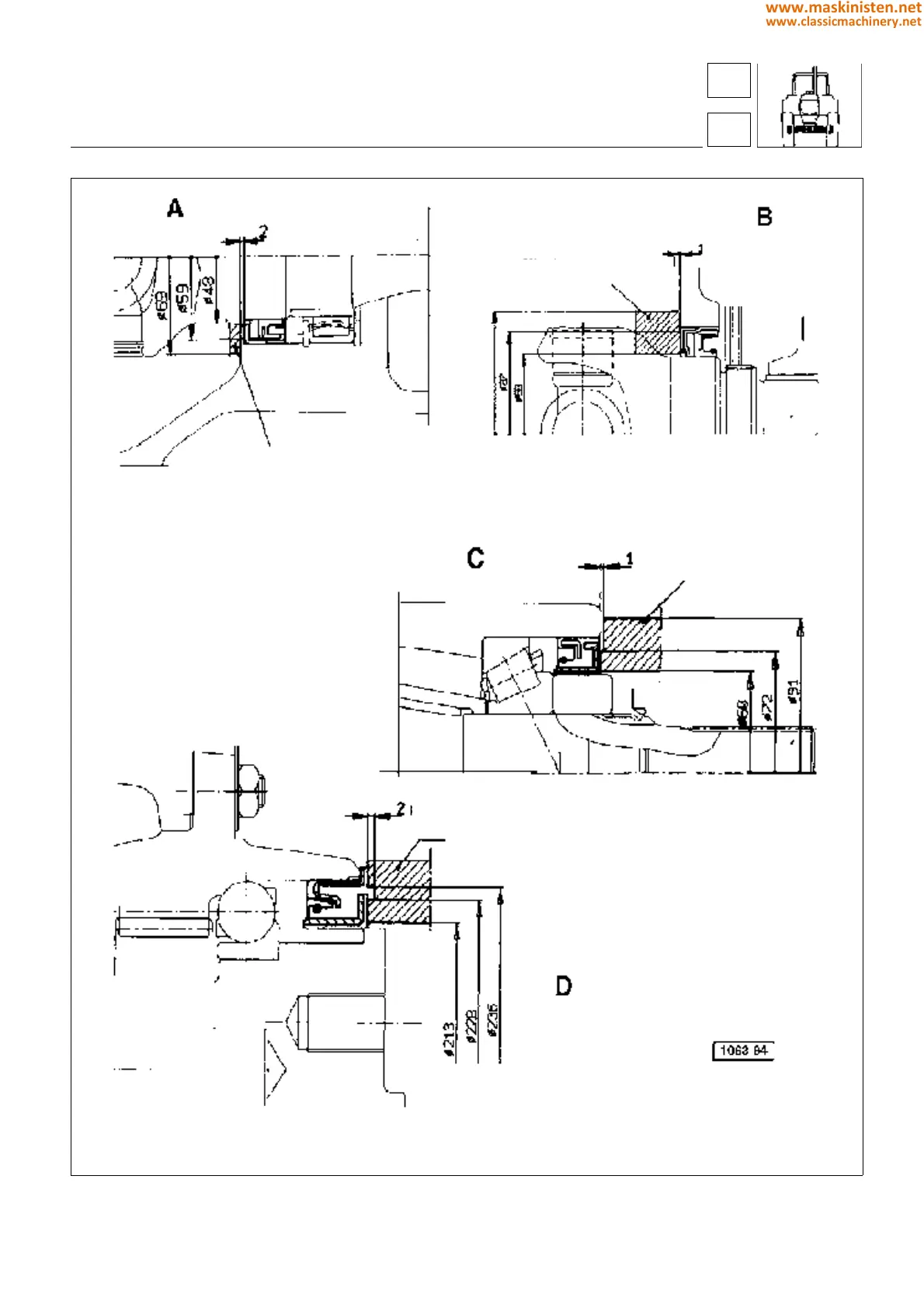

Fig. 17 - Waterproof seals.
drive axles - axles
4-W.D. front axle
Fitment of waterproof seals
A - inner halfshaft
B - outer halfshaft
C - bevel pinion
D - hub
The seals are fitted using a special
seating tool. Position the ring as indi-
cated and press home until the tool lo-
cates.
The dimensions illustrated are for fabri-
cation of the tool.
OUTLINE PLUG
OUTLINE PLUG
OUTLINE PLUG
DEPTH OF THE SEAT
43
4
203
