Unscrew the cylinder (4).
Remove the spring (5).
Unscrew the opening signal light (8).
Unscrew the nut (16).
Remove the support washer (15) and the packing (14).
Clean the parts and change them if necessary.
Before reassembling :

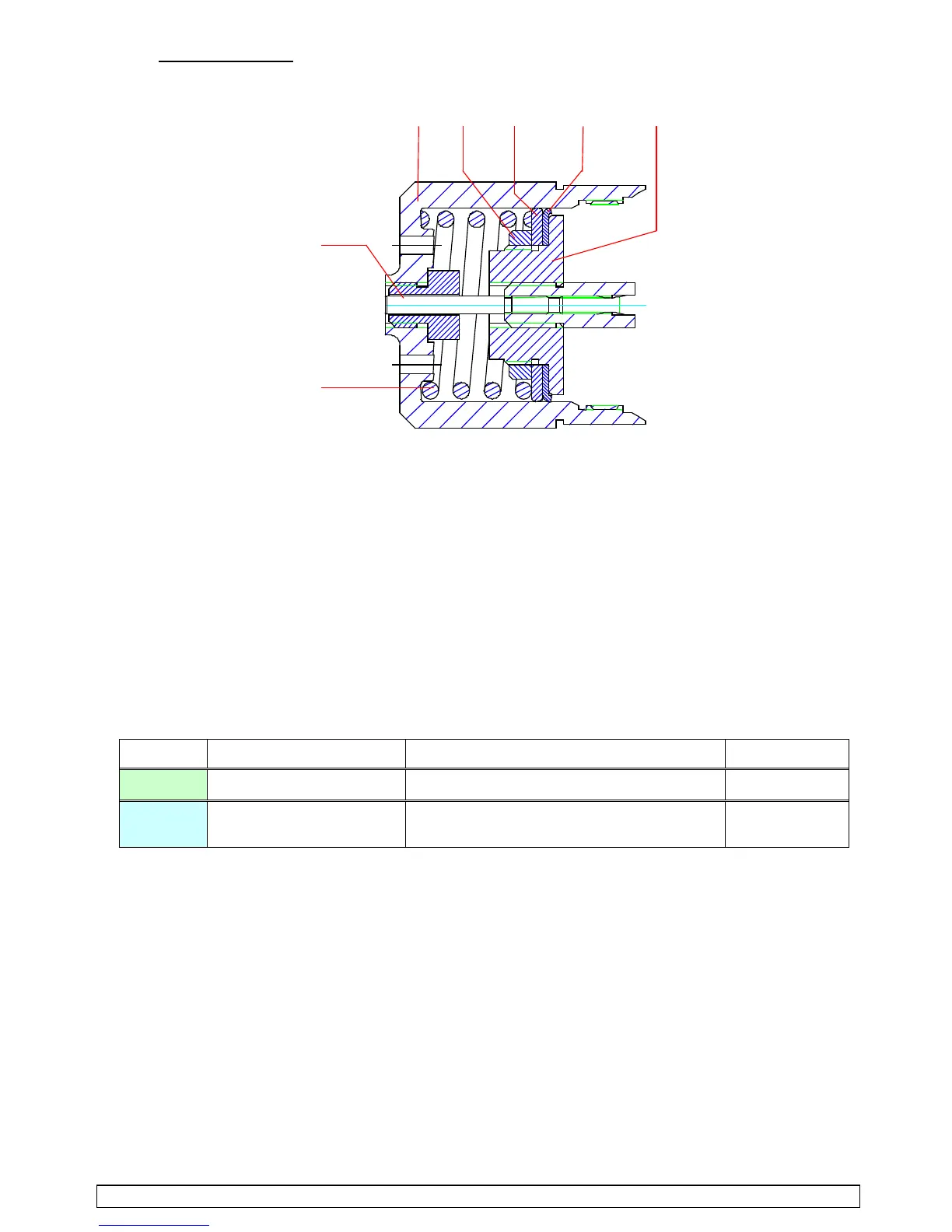

Before assembling on the piston (13), take care of shaping the cartridge lip (14) by hand as
shown in the above drawing (cartridge turned up on the piston).
The nut (16) must be glued on the piston (13) with loctite adhesive
(eg : Loctite 222).
Index Instructions Description Part number
A 1
PTFE grease
PTFE grease (10 ml / 0.0026 US gal)
560.440.101
C 2
Low strength
- Anaerobic Adhesive
Loctite 222 (50 ml / 0.013 US gal)
554.180.010
SAMES KREMLIN Page 39 Manual : 573.191.112
