SAMES KREMLIN Cyclomix Micro - Installation Procedures

NOTA : The version 2.82 is only compatible on electronic boards with version higher than V.2.32. Here
after an overview of major versions :
Kinf of
processor
- Electronic
card
Manufacturing
date first units
Soft
version
Presence of error 6 Soft compatibility
with 2.82 latest
version
PIC 18F4520
-
2.31
-
-
PIC 18F4620
09 Y 1001
2.32
-
Yes
10 Y 1133
2.6
Yes
Yes
14 Y 1152
2.82
Yes
- Can be setup with P12
Yes
Different versions of the CYCLOMIX
TM
MICRO :
Configurations
BASE
CATALYST
CYCLOMIX
TM
MICRO
1 base + 1 solvent
1 cata
3 bases + 1 solvent
1 cata
CYCLOMIX
TM
MICRO +
1 base + 1 solvent 1 cata + 1 solvent
3 bases + 1 solvent 1 cata + 1 solvent
CYCLOMIX
TM
MICRO+ PH
1 base + 1 solvent 1 cata + 1 solvent
3 bases + 1 solvent 1 cata + 1 solvent
The control unit is the same for all the versions of the CYCLOMIX
TM
MICRO.
You can change the configuration displacing the shunt located on the µ card (J7 terminal)
- (refer to"Annexes" - electric diagram).
5. INSTALLATION


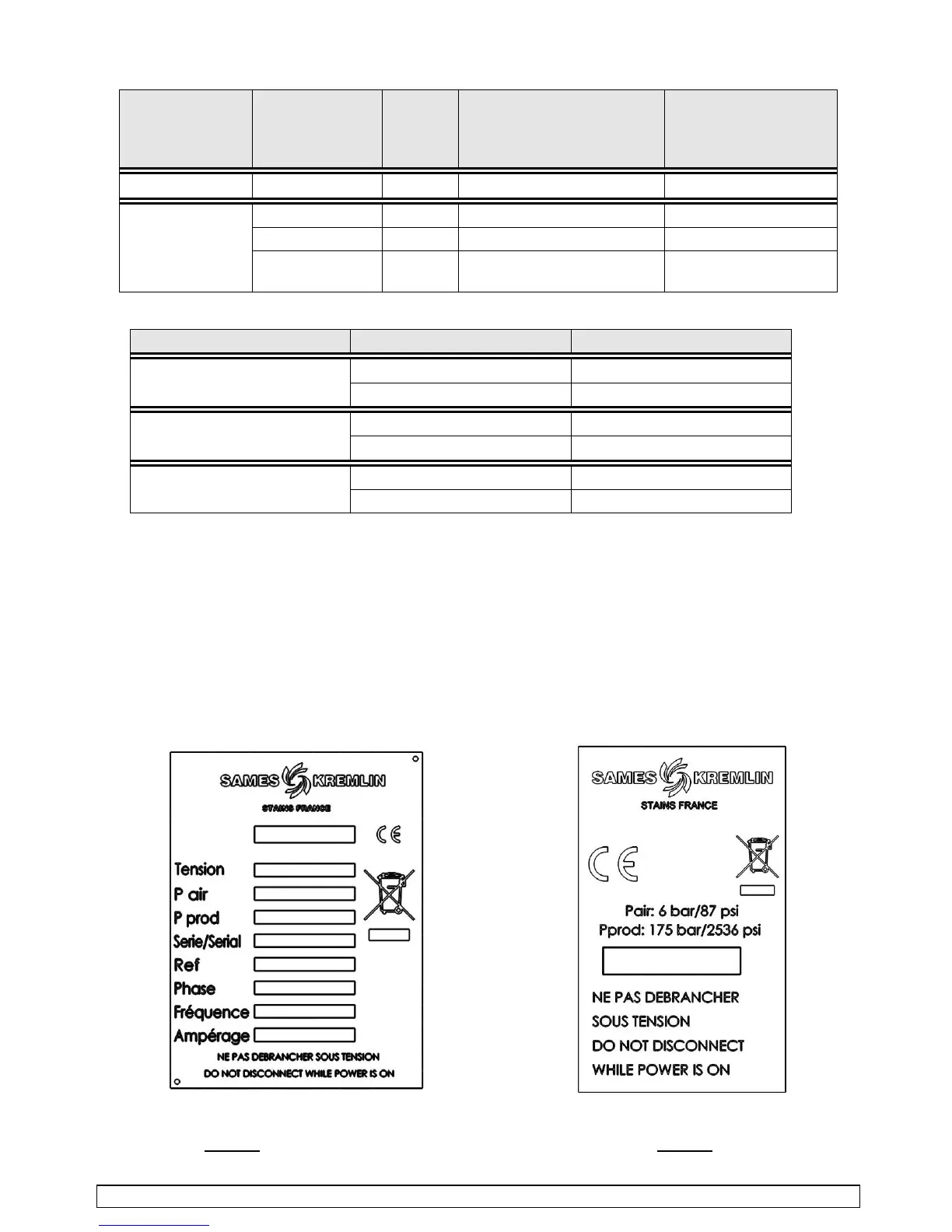

DESCRIPTION OF THE LABEL MARKINGS
The CYCLOMIX
TM
MICRO is fitted with 2 label markings : a label marking on the control unit and the other one
on the fluid module.
Marking label on the control unit
(bay located outside the spray booth in a safe area)
Marking label on the fluid module
(fluid module located outside the spray booth in a
safe area)
SAMES KREMLIN Page 9 Manual : 573.191.112
