5. DISASSEMBLY - ASSEMBLY
Prior to removing a component shut off air and material supplies. Depressurize the system.
 NEW MODULE INSTALLATION (OR MODULE REPLACEMENT) (REFER TO DOC. 573.187.050)

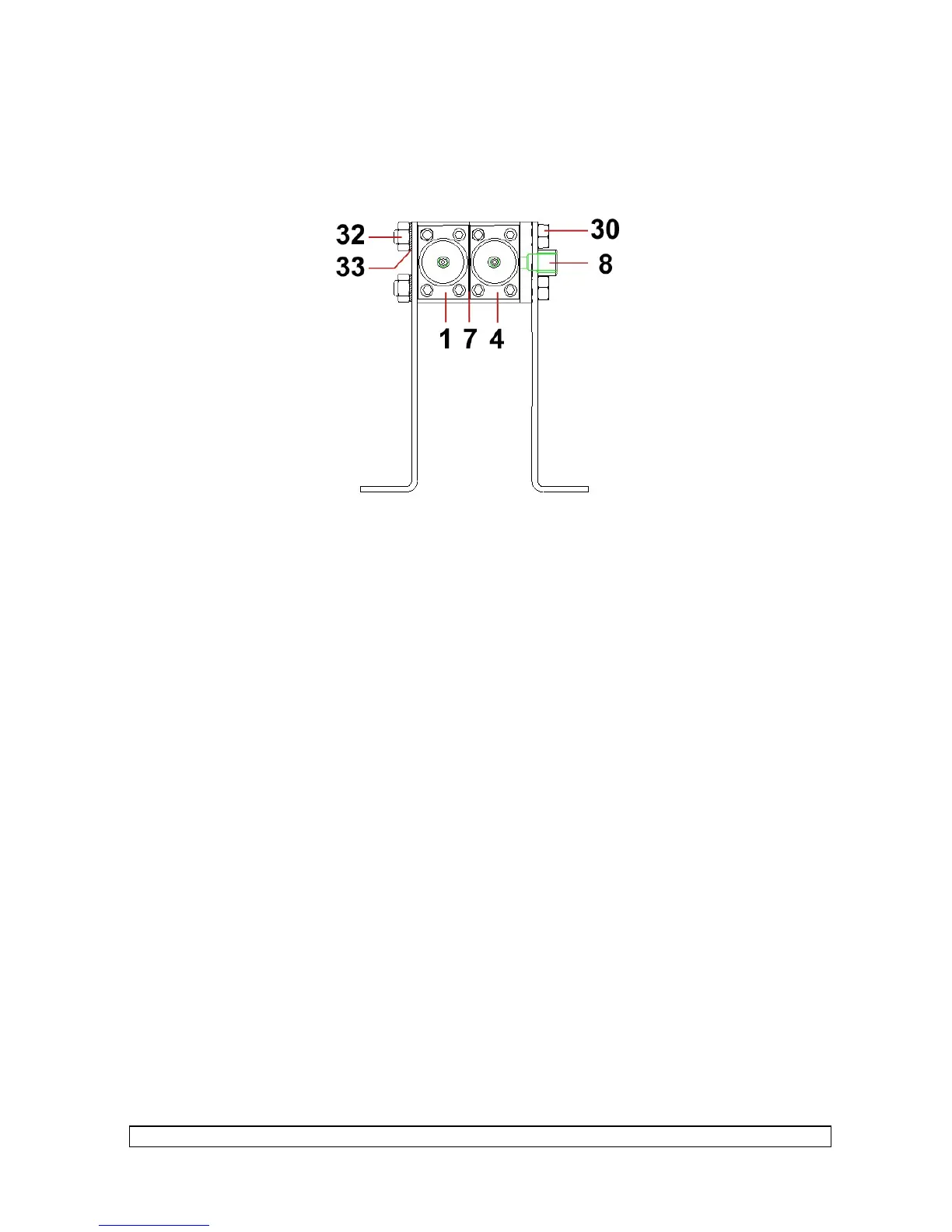

Unscrew nuts (32).
Remove washers (33).
Carry out the same operation for the second tie-rod.
Remove both tie-rods (30).
Mount the new module (be certain seal (7) is installed between two modules).
Slide the appropriate tie-rods through the modules, from fluid outlet flange to the end
module.
Be careful when positioning tie-rods (30), tie-rods head against fluid outlet flange (8).
Install washers (33) and then screw nuts (32).
