SAMES KREMLIN Page 4 Manual : 573.186.112

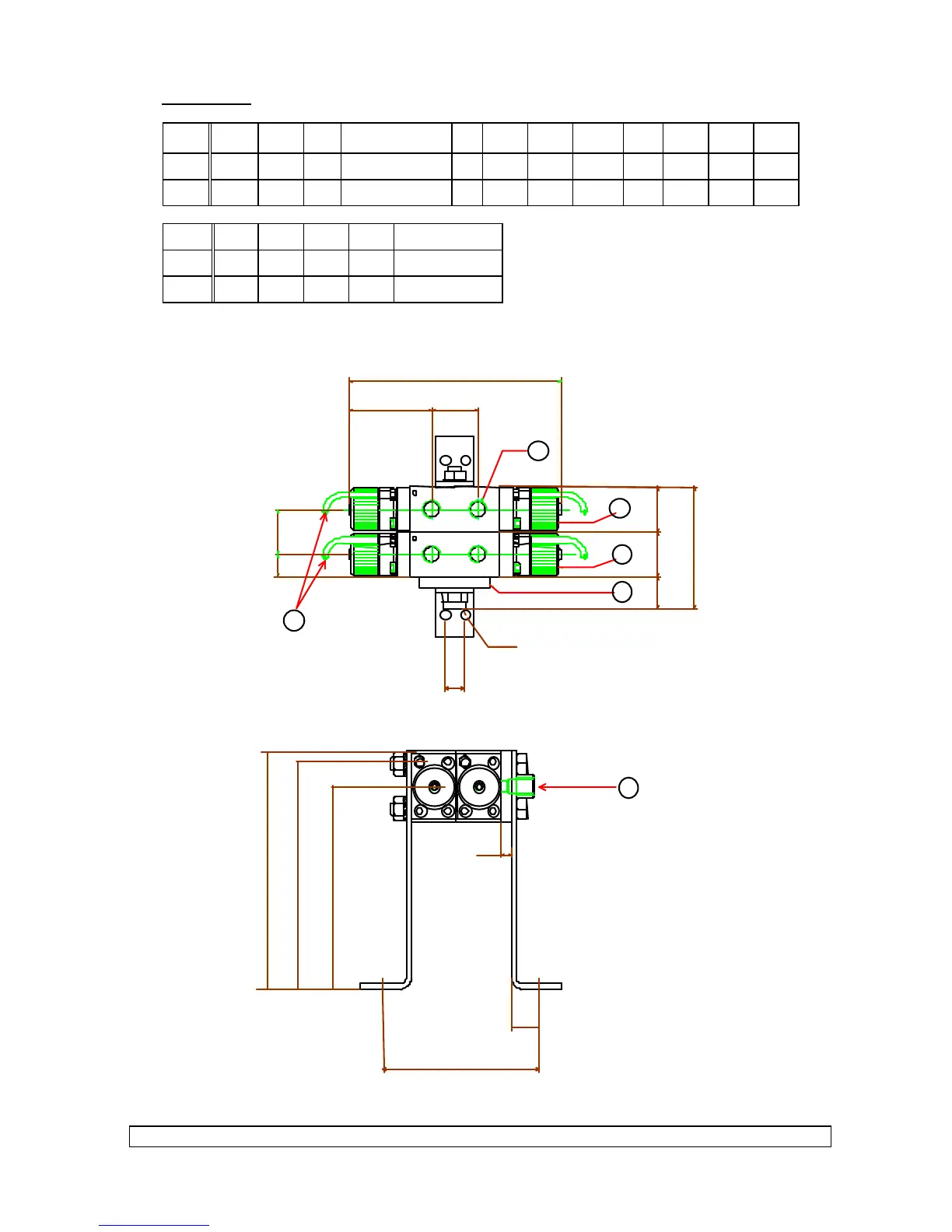

Dimensions :
Ind. A B C D * E F G H * I J K L
mm
35 35 25 60 + (N x 35) 165 64,5 36 N x 35 17,5 Ø 6,5 15 185
"
1.38 1.38 1 2.36 + (N x 1.38) 6.50 2.54 1.42 Nx1.38 0.69 0.26 0.59 7.28
Ind. M O P Q R *
mm
176,5 157,5 8 21,5 86 + (N x 35)
"
6.95 6.20 5/16 0.85 3.38 + (N x 1.38)
* N = Number of intermediate module
3
2
1
E
FG
H
I
J
K
D
4
A
B
C
5
6
R
Q
P
LMO
