SAMES KREMLIN Page 6 Manual : 573.186.112

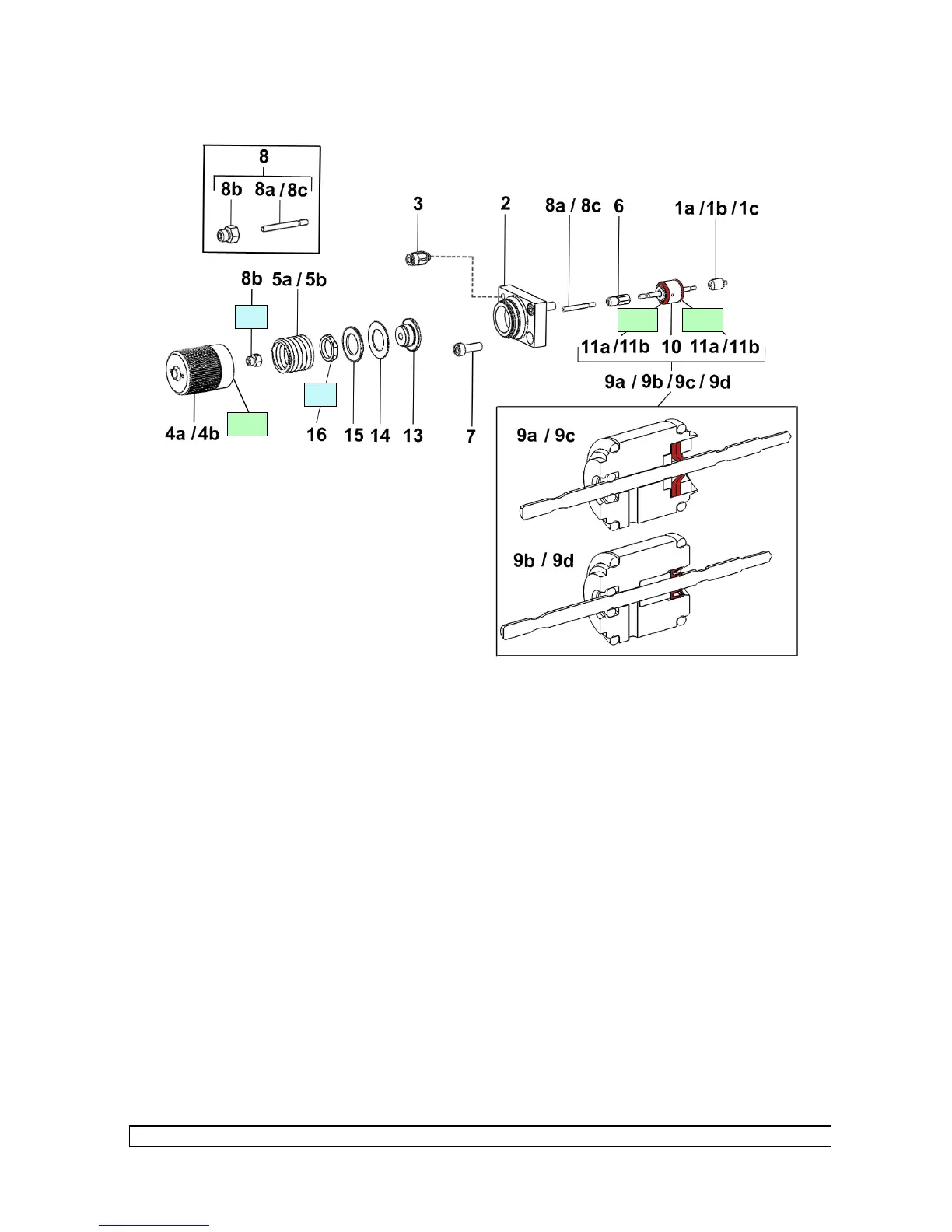

CARTRIDGE OF A FLUID VALVE (IND. 9A / 9B / 9C / 9D) (REFER TO DOC. 573.188.050)
Unscrew the 3 screws (7).
Extract the valve from the module body.
Unscrew the needle (1a / 1b / 1c).
Unscrew the cylinder (4a / 4b).
Hold rod carrier (6), unscrew the needle rod and remove cartridge with rod assembly (9a / 9b
/ 9c / 9d). Remove the seals.
When reassembling :
Change the seals (11a / 11b), lubricate them then install new cartridge (9a / 9b / 9c / 9d) in
cylinder support (2) by pushing it until the cartridge shoulder comes to lean against the
cylinder support shoulder. Then reinstall all the components in the reverse order of
disassembly.
Install the valve in front of the module body.
Centre the cartridge (9a / 9b / 9c / 9d) on the module body and reinstall screws (7).
A 1
C 2
C 2
A 1 A 1
