7.3.6. Procedure D1: Powder duct

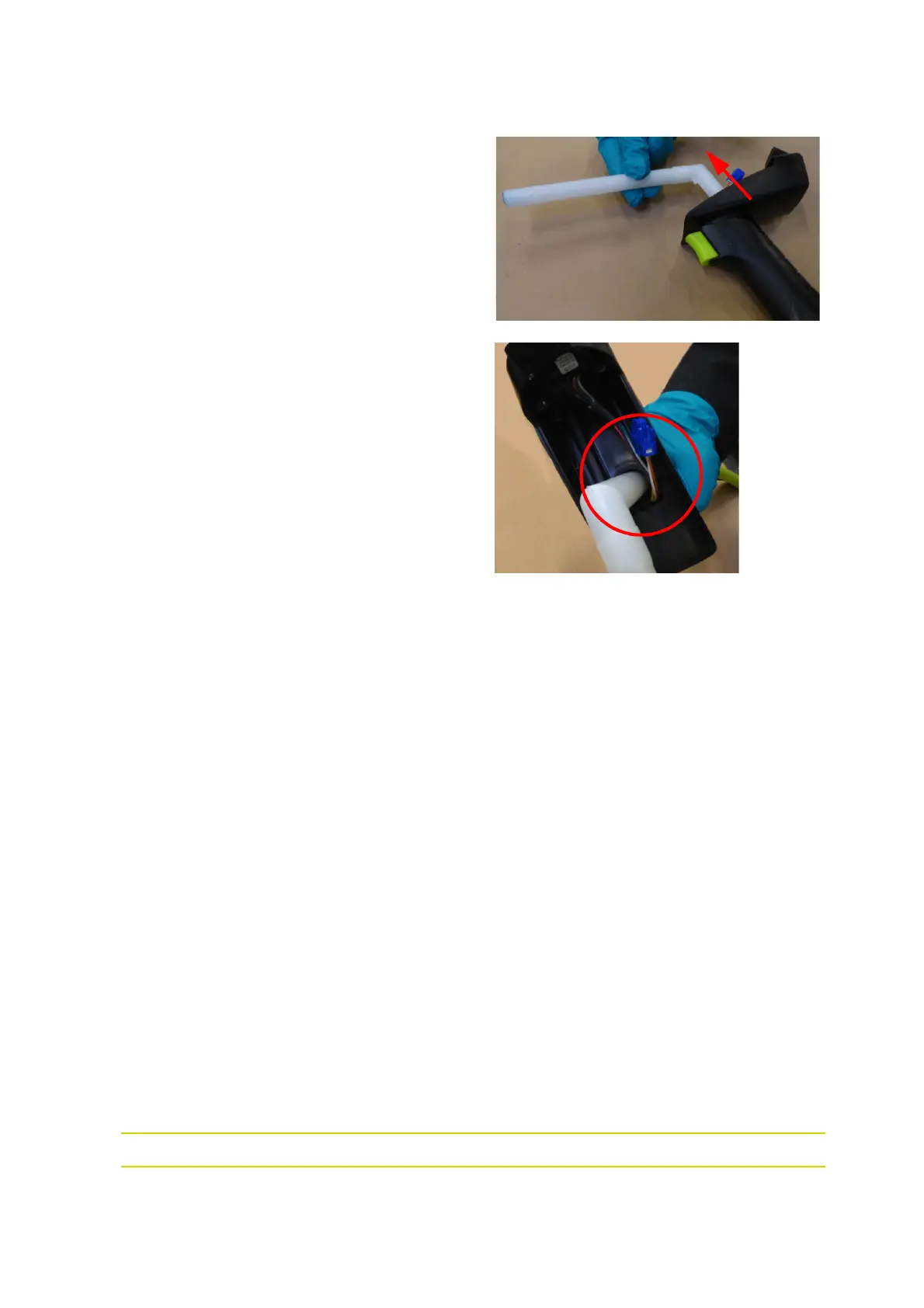

• Step 1: Extract the powder duct from the
handle.
• Step 2: Reassembly
1 Clean the inside of the powder duct
with compressed air.
2 Check the condition of the seal and the
powder duct, change them if neces-
sary.
3 Insert the duct from the top of the han-
dle, taking care to place the wires on
the side opposite the air duct (the wires
must not touch the sharp angle of the
handle).
