SAMES KREMLIN Inogun M - Optional: Extended flat spray nozzle

Index revision : C - July 2021 45 7132
9.4.2. Optional: Extended flat spray nozzle
(*) Electrode extension including long electrode extension (900018739), 10 Mohm resistance with spring
(910032309) and HV contact extended nozzle (900018741).
Part
Number
Nozzle
length
(mm)
Body
Number of
electrode
extensions
(*)
Nut
Spray
déflector
Spring
ionizer
Electrode
extension
Electrode
Support
Reinforce-
ment
sleeve
910028485 150 900021080 1
900018342
900020896 900017811 900017797
910027640
-
910028486 300 900021081 2 -
910032772 450 900021083 3
900020473 910032276 900020899
910032773 600 900021085 4

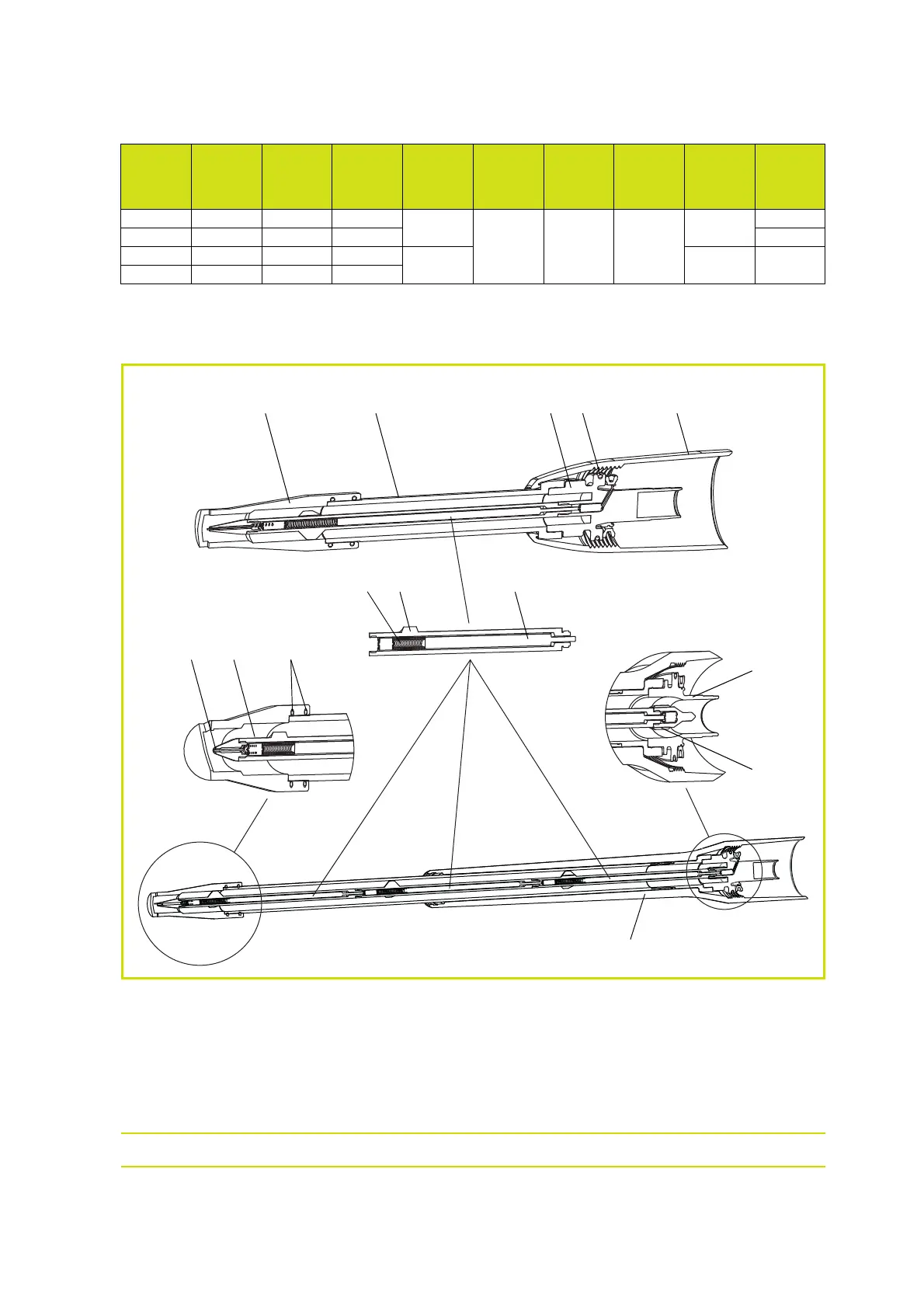

DES08272
9 10
1 2 3
1413
7
12
8
Length: 150 mm
Length: 450 mm
6
11
4 5
