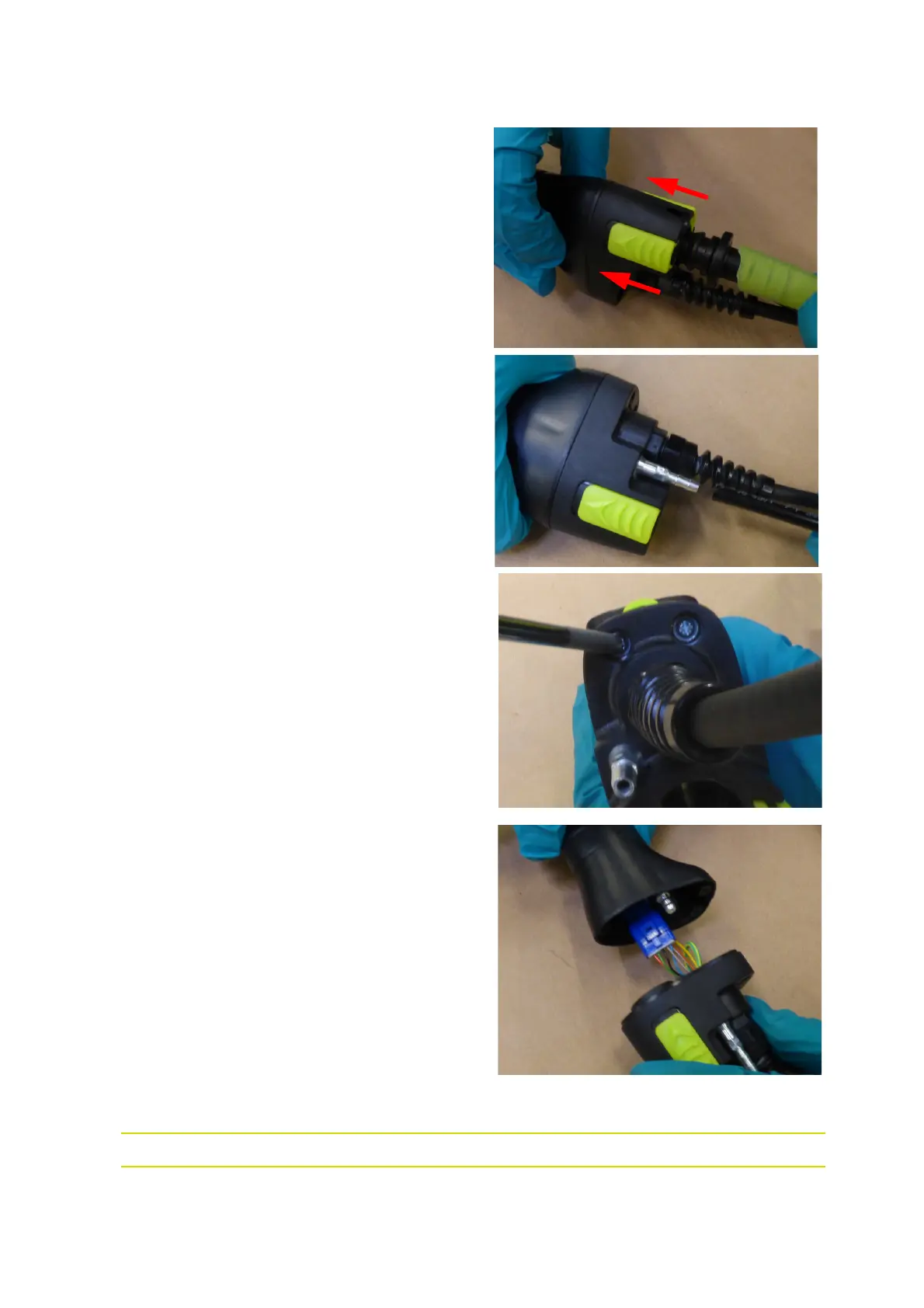

7.3.7. Procedure D2: Replacement of low voltage cable
• Step 1: Push the 2 bolts so that the powder
hose can be unlocked and removed.
• Step 2: Remove the air hose.
• Step 3: Loosen the 3 screws.
• Step 4: Remove the base plate from the
handle and disconnect the blue connec-
tor from the control box.
