Markings on the device
The nameplate is afxed to the valve body
(see Fig.2-2).
Nameplate

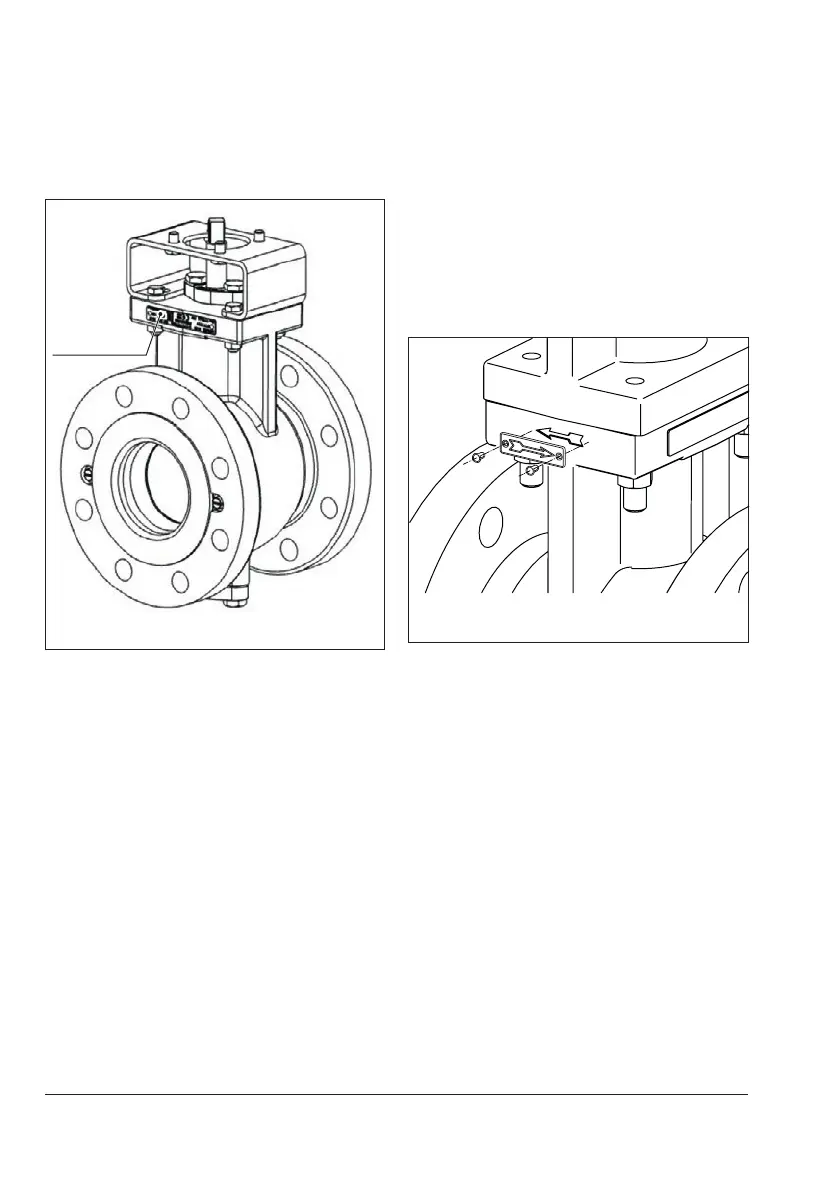

Fig.2-2: Valve nameplate
2.2 Actuator nameplate
See associated actuator documentation.
2.3 Material numbers
The seat and segmented ball of the valves
have an item number written on them. You
can contact us stating this item number to
nd out which material is used.
2.4 Marking to indicate direc-
tionofow
The standard direction ow is indicated by
an arrow stamped on the side of the valve
body. When the reverse direction of ow is
used, a mounted label indicates the changed
direction of ow.
Fig.2-3: Label after reversing the direction of
ow
